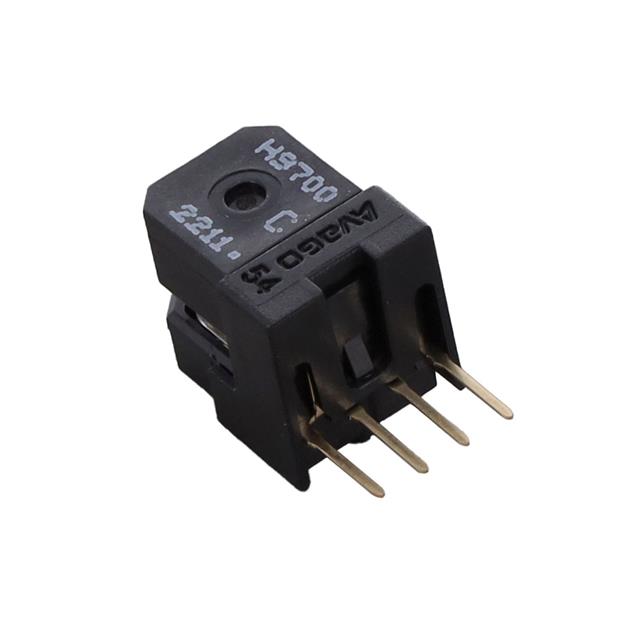

HEDS-9700-C54
5V, 2CH,100CPR, DIGManufacturer: Broadcom Limited
Categories: Encoders
Quality Control: Learn More
Rotary Encoder Optical 100 Quadrature (Incremental) Right Angle
Additional Information
Series: HEDSRoHS Status: RoHS CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Output Type | Quadrature (Incremental) |
| Mounting Type | Chassis Mount, Motors |
| Orientation | Right Angle |
| Termination Style | Terminal Pins |
| Voltage - Supply | 4.5V ~ 5.5V |
| Encoder Type | Optical |
| Detent | No |
| Pulses per Revolution | 100 |
| Actuator Type | Codewheel Not Included |
| Built in Switch | No |
| Rotational Life (Cycles Min) | - |
| Programmable | Not Verified |
