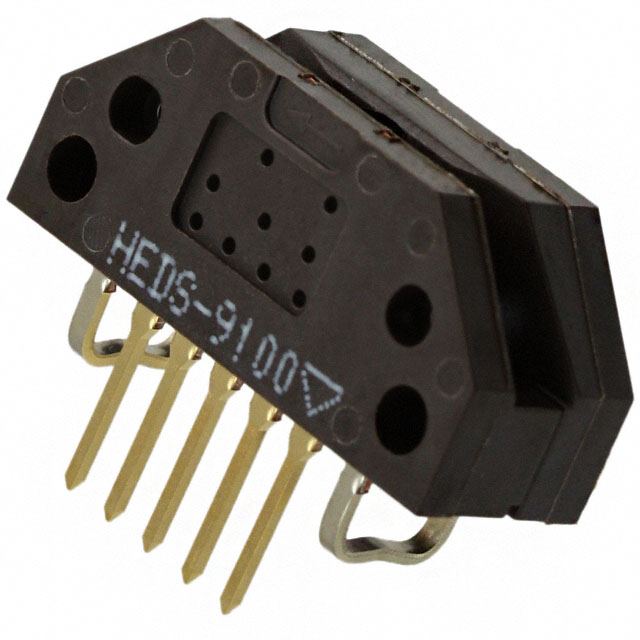

HEDS-9100#C00
ROTARY ENCODER OPTICAL 100PPRManufacturer: Broadcom Limited
Categories: Encoders
Quality Control: Learn More
Rotary Encoder Optical 100 Quadrature (Incremental) Vertical
Additional Information
Series: HEDSRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Output Type | Quadrature (Incremental) |
| Mounting Type | Chassis Mount |
| Orientation | Vertical |
| Termination Style | Terminal Pins |
| Voltage - Supply | 5V |
| Encoder Type | Optical |
| Detent | No |
| Pulses per Revolution | 100 |
| Actuator Type | Codewheel Not Included |
| Built in Switch | No |
| Rotational Life (Cycles Min) | - |
| Programmable | Not Verified |
