HEDS-9000#U00

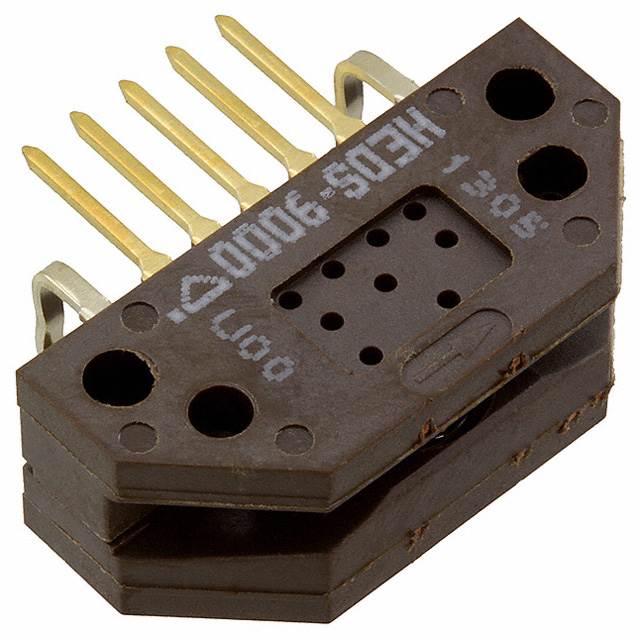

ROTARY ENCODER OPTICAL 2048PPRManufacturer: Broadcom Limited
Categories: Encoders
Quality Control: Learn More
Broadcom Limited HEDS Series HEDS-9000-U00 is an optical incremental rotary encoder designed for precise rotational sensing. This vertical mount component provides 2048 pulses per revolution (PPR) via its quadrature output, enabling high-resolution position feedback. The HEDS-9000-U00 operates with a 5V supply voltage and features terminal pin terminations for robust connectivity. It is engineered for applications requiring accurate motion control and measurement, commonly found in industrial automation, robotics, and precision instrumentation. The encoder is supplied in bulk packaging and requires an external codewheel for operation.
Additional Information
Series: HEDSRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Quadrature (Incremental) |
| Mounting Type | Chassis Mount |
| Orientation | Vertical |
| Termination Style | Terminal Pins |
| Voltage - Supply | 5V |
| Encoder Type | Optical |
| Detent | No |
| Pulses per Revolution | 2048 |
| Actuator Type | Codewheel Not Included |
| Built in Switch | No |
| Rotational Life (Cycles Min) | - |
| Programmable | Not Verified |
