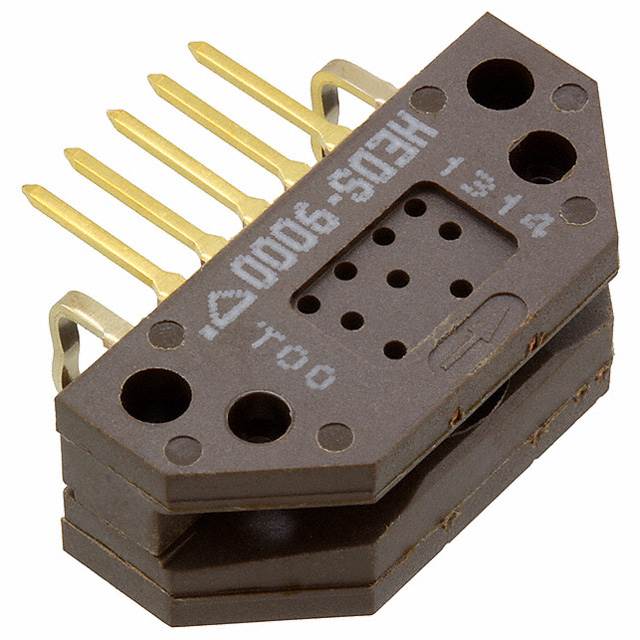

HEDS-9000#T00
ROTARY ENCODER OPTICAL 2000PPRManufacturer: Broadcom Limited
Categories: Encoders
Quality Control: Learn More
Broadcom Limited HEDS series HEDS-9000-T00 is an optical rotary encoder with a 5V supply voltage. This vertical mount, chassis mount component provides 2000 pulses per revolution in quadrature (incremental) output. The encoder is designed for applications requiring precise rotational feedback, such as in industrial automation, motion control systems, and medical equipment. It features terminal pin termination and is supplied in bulk packaging. The HEDS-9000-T00 is an incremental encoder, meaning it outputs a series of pulses that can be counted to determine the position and direction of rotation. Its robust design and high resolution make it suitable for demanding environments.
Additional Information
Series: HEDSRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Quadrature (Incremental) |
| Mounting Type | Chassis Mount |
| Orientation | Vertical |
| Termination Style | Terminal Pins |
| Voltage - Supply | 5V |
| Encoder Type | Optical |
| Detent | No |
| Pulses per Revolution | 2000 |
| Actuator Type | Codewheel Not Included |
| Built in Switch | No |
| Rotational Life (Cycles Min) | - |
| Programmable | Not Verified |
