HEDR-55L2-BY07
ROTARY ENCODER OPTICAL 3600PPRManufacturer: Broadcom Limited
Categories: Encoders
Quality Control: Learn More
Broadcom Limited HEDR Series HEDR-55L2-BY07. This optical rotary encoder offers 3600 pulses per revolution with quadrature and index output for incremental motion feedback. Designed for chassis and motor mounting with a 5mm open center actuator, it features terminal pin termination and operates at a 5V supply voltage. The HEDR-55L2-BY07 is utilized in industrial automation, robotics, and motor control applications where precise rotational position and speed sensing are critical. Its robust design ensures reliable performance in demanding environments.
Additional Information
Series: HEDRRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Quadrature with Index (Incremental) |
| Mounting Type | Chassis Mount, Motors |
| Orientation | - |
| Termination Style | Terminal Pins |
| Voltage - Supply | 5V |
| Encoder Type | Optical |
| Detent | No |
| Pulses per Revolution | 3600 |
| Actuator Type | 5mm Open Center |
| Built in Switch | No |
| Rotational Life (Cycles Min) | - |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

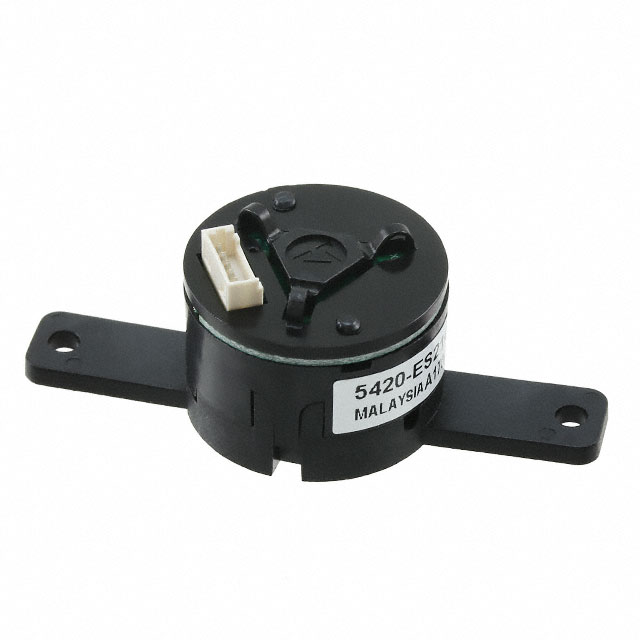

HEDR-5420-ES211
