AEDT-9340-W00

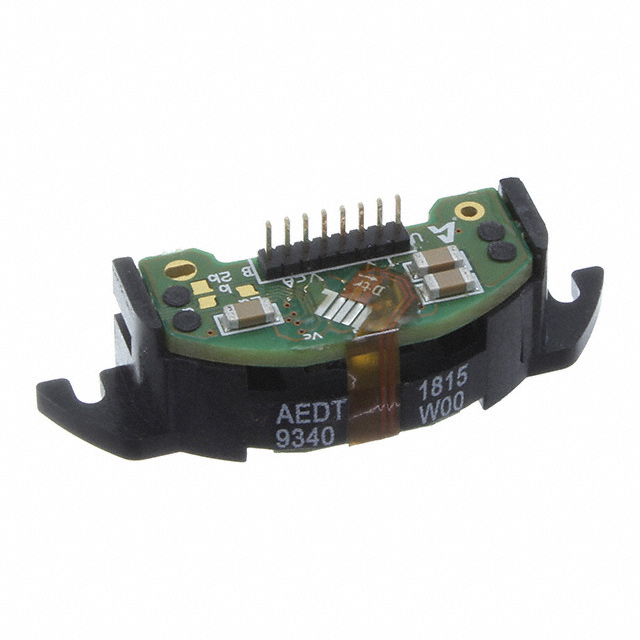

ROTARY ENCODER OPTICAL 2500PPRManufacturer: Broadcom Limited
Categories: Encoders
Quality Control: Learn More
Broadcom Limited's AEDT-9340-W00 is an optical rotary encoder from the AEDT-9340 series. This chassis-mount component offers 2500 pulses per revolution (PPR) with quadrature and index output, providing precise incremental position feedback. Designed for demanding applications, it features terminal pin termination for reliable connectivity and operates at a 5V supply voltage. The AEDT-9340-W00 is suitable for industrial automation, robotics, and motor control systems where accurate angular measurement is critical. The actuator type specifies that a codewheel is not included, allowing for flexible integration with custom or existing mechanical systems. This component is supplied in tube packaging.
Additional Information
Series: AEDT-9340RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Output Type | Quadrature with Index (Incremental) |
| Mounting Type | Chassis Mount |
| Orientation | - |
| Termination Style | Terminal Pins |
| Voltage - Supply | 5V |
| Encoder Type | Optical |
| Detent | No |
| Pulses per Revolution | 2500 |
| Actuator Type | Codewheel Not Included |
| Built in Switch | No |
| Rotational Life (Cycles Min) | - |
| Programmable | Not Verified |
