AEDT-9140-F00

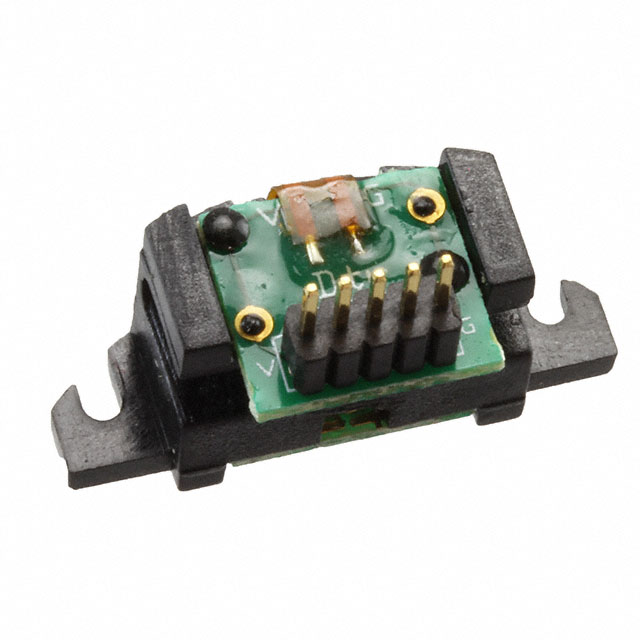

ROTARY ENCODER OPTICAL 256PPRManufacturer: Broadcom Limited
Categories: Encoders
Quality Control: Learn More
Broadcom Limited AEDT-9140-F00 is an optical rotary encoder from the AEDT-9140 series, offering 256 pulses per revolution (PPR) with quadrature and index output. This incremental encoder facilitates precise position and speed sensing in demanding applications. Its chassis mount design and terminal pin termination style ensure robust integration into various electromechanical systems. The AEDT-9140-F00 is suitable for use in industrial automation, robotics, and motion control systems where accurate feedback is critical. The component operates at a 5V supply voltage and is supplied in bulk packaging. It is designed for codewheel integration, with no built-in switch or detent functionality.
Additional Information
Series: AEDT-9140RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Quadrature with Index (Incremental) |
| Mounting Type | Chassis Mount |
| Orientation | - |
| Termination Style | Terminal Pins |
| Voltage - Supply | 5V |
| Encoder Type | Optical |
| Detent | No |
| Pulses per Revolution | 256 |
| Actuator Type | Codewheel Not Included |
| Built in Switch | No |
| Rotational Life (Cycles Min) | - |
| Programmable | Not Verified |
