AEDB-9340-L13A
ROTARY ENCODER OPTICAL 1250PPRManufacturer: Broadcom Limited
Categories: Encoders
Quality Control: Learn More

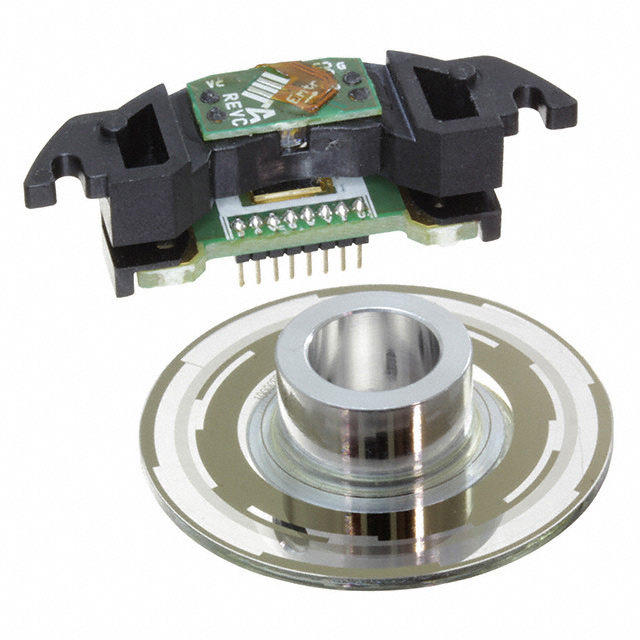

Broadcom Limited AEDB-9340-L13A is an optical rotary encoder from the AEDB-9340 series, offering 1250 pulses per revolution with quadrature and index outputs. This incremental encoder features an 8mm open center actuator and is designed for chassis and motor mounting. It operates on a 5V supply and utilizes terminal pin termination. The device is suitable for applications requiring precise position and speed feedback, commonly found in industrial automation, robotics, and motor control systems. Its robust optical sensing technology ensures reliable performance in demanding environments.
Additional Information
Series: AEDB-9340RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Quadrature with Index (Incremental) |
| Mounting Type | Chassis Mount, Motors |
| Orientation | - |
| Termination Style | Terminal Pins |
| Voltage - Supply | 5V |
| Encoder Type | Optical |
| Detent | No |
| Pulses per Revolution | 1250 |
| Actuator Type | 8mm Open Center |
| Built in Switch | No |
| Rotational Life (Cycles Min) | - |
| Programmable | Not Verified |
Request a Quote
