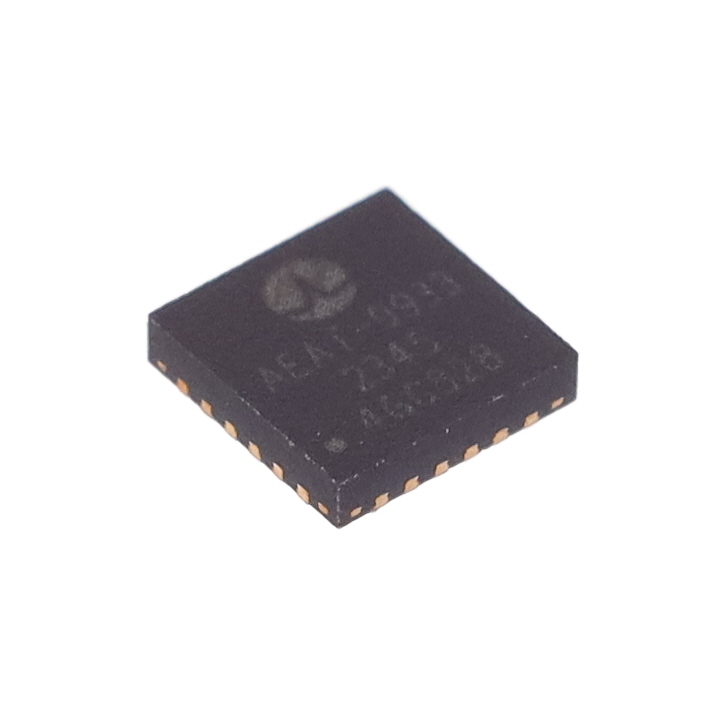

AEAT-9933-Q24
14BITS MAG ENC ON-OFF AXISManufacturer: Broadcom Limited
Categories: Encoders
Quality Control: Learn More
Rotary Encoder Magnetic 1024 Commutation, PWM, SPI, Quadrature with index (Incremental) Vertical
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Output Type | Commutation, PWM, SPI, Quadrature with index (Incremental) |
| Mounting Type | Surface Mount |
| Orientation | Vertical |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 4.5V ~ 5.5V |
| Encoder Type | Magnetic |
| Detent | No |
| Pulses per Revolution | 1024 |
| Actuator Type | External Magnet, Not Included |
| Built in Switch | Yes |
| Rotational Life (Cycles Min) | - |
| Grade | - |
| Programmable | - |
| Qualification | - |
