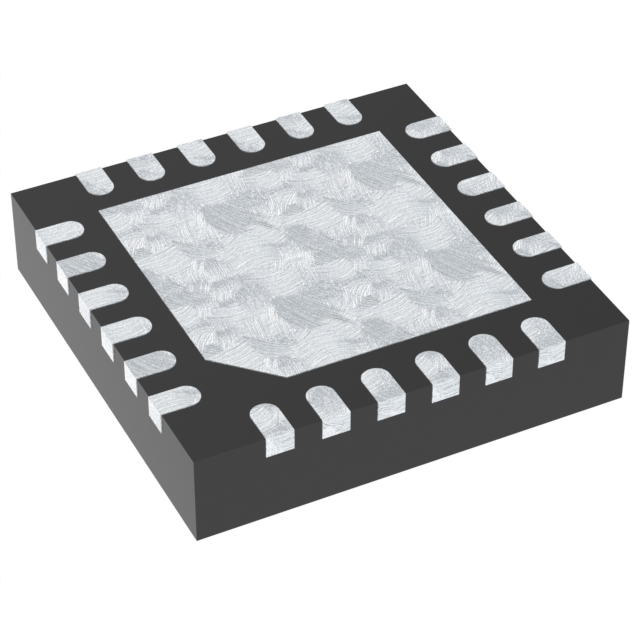

AEAT-8811-Q24
ENHANCE PROG 16BITS IC MAGNETICManufacturer: Broadcom Limited
Categories: Encoders
Quality Control: Learn More
Broadcom Limited AEAT-8811-Q24 is a programmable magnetic rotary encoder designed for precise motion sensing applications. This device offers flexible output configurations including Commutation, PWM, and SPI, alongside standard Quadrature with an index output. Its surface mount termination style (SMD/SMT Tab) and vertical orientation facilitate integration into compact designs. The AEAT-8811-Q24 operates within a 4.5V to 5.5V supply voltage range and requires an external magnet, which is not included. It supports programmable pulses per revolution, providing adaptability for various motor control and automation requirements. This component is typically utilized in industrial automation, robotics, and automotive sectors where accurate angular position feedback is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Output Type | Commutation, PWM, SPI, Quadrature with index (Incremental) |
| Mounting Type | Surface Mount |
| Orientation | Vertical |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 4.5V ~ 5.5V |
| Encoder Type | Magnetic |
| Detent | No |
| Pulses per Revolution | Programmable |
| Actuator Type | External Magnet, Not Included |
| Built in Switch | No |
| Rotational Life (Cycles Min) | - |
| Programmable | Not Verified |
