HLMP-2885-FG000
LED LT BAR 8.89X19.05MM SGL GRNManufacturer: Broadcom Limited
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

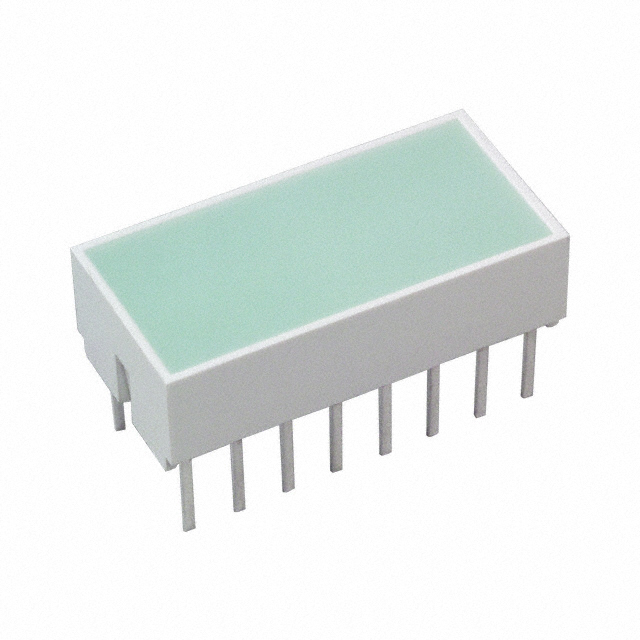

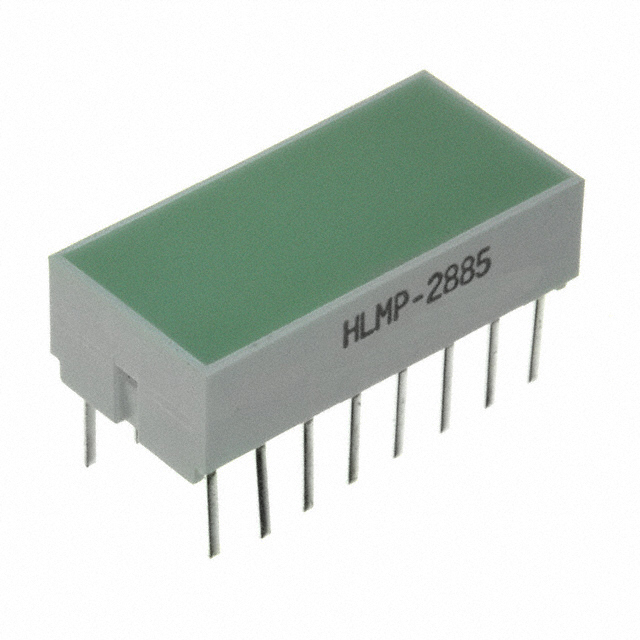

Broadcom Limited HLMP-2885 Series single green LED bar, part number HLMP-2885-FG000, is a through-hole mounted component designed for circuit board indication. This electronic component features a rectangle with a flat top lens, measuring 19.05mm x 8.89mm, and operates at a forward voltage of 2.6V with a typical forward current of 30mA. The green LED exhibits a peak wavelength of 565nm and a typical luminous intensity of 100mcd. Its DIP configuration and robust construction make it suitable for applications in industrial automation, telecommunications, and consumer electronics where reliable visual feedback is critical. The component is supplied in bulk packaging.
Additional Information
Series: HLMP-2885RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 30mA |
| Color | Green |
| Voltage Rating | 2.6V |
| Mounting Type | Through Hole |
| Millicandela Rating | 100mcd |
| Configuration | Bar - Single, DIP |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | 565nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 19.05mm x 8.89mm |
Request a Quote
Clients Also Buy
HLMP-2885
LED LT BAR 8.89X19.05MM SGL GRN

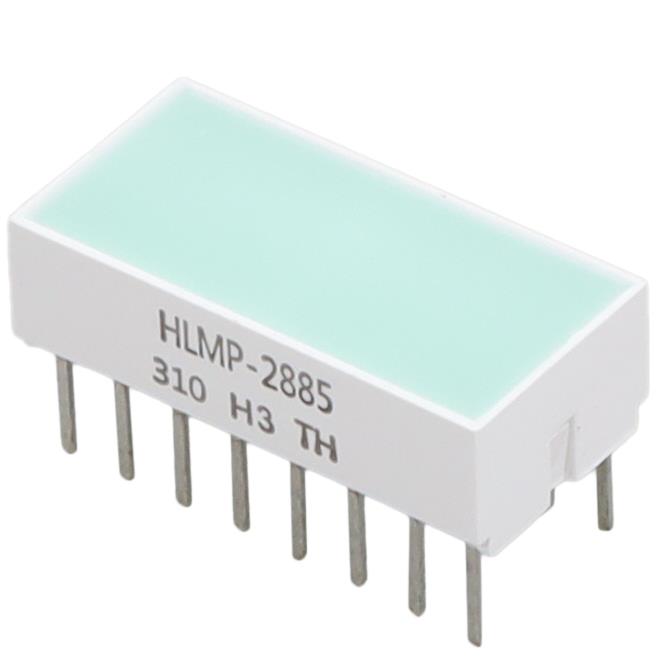

HLMP-2885-HI000
