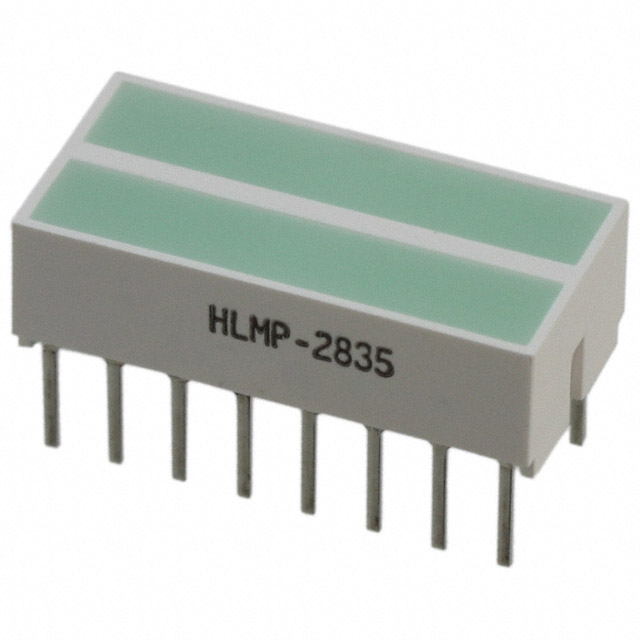

HLMP-2835
LED CBI 2-SEG GRN THROUGH HOLEManufacturer: Broadcom Limited
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More
Broadcom Limited HLMP-2835 is a two-segment green LED circuit board indicator designed for through-hole mounting. This component features a DIP package configuration, offering a two-high bar arrangement. Each segment is rated for 2.2V and a forward current of 20mA, with a typical peak wavelength of 565nm and a luminous intensity of 50mcd. This indicator is commonly utilized in industrial automation, medical equipment, and consumer electronics where clear visual status feedback is required on printed circuit boards. Its robust design and reliable performance make it suitable for demanding applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Green (x 2) |
| Voltage Rating | 2.2V |
| Mounting Type | Through Hole |
| Millicandela Rating | 50mcd |
| Configuration | Bar - 2 High, DIP |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | 565nm |
| Lens Style | - |
| Lens Size | - |
