HLMP-2735
LED CBI 2-SEG YL THROUGH HOLEManufacturer: Broadcom Limited
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

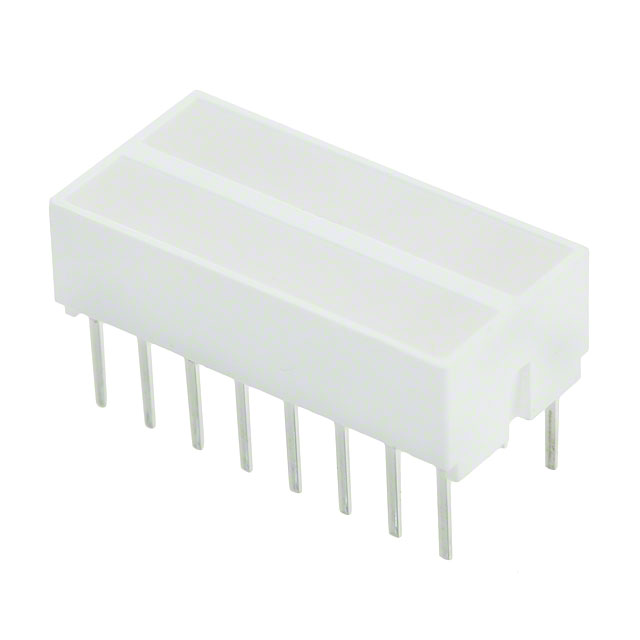

Broadcom Limited HLMP-2735 is a 2-segment LED circuit board indicator featuring a yellow illumination and a rectangular, flat-top lens. This through-hole component is designed with a DIP package for straightforward PCB integration. Each segment operates at a typical forward voltage of 2.1V and a forward current of 20mA, achieving a peak wavelength of 583nm and a luminous intensity of 38mcd. This component is commonly utilized in industrial automation, test and measurement equipment, and consumer electronics for status indication and visual feedback.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Yellow (x 2) |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole |
| Millicandela Rating | 38mcd |
| Configuration | Bar - 2 High, DIP |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | 583nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | - |
