HLMP-2655-EF000
LED LT BAR 8.89X8.89MM SGL HERManufacturer: Broadcom Limited
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

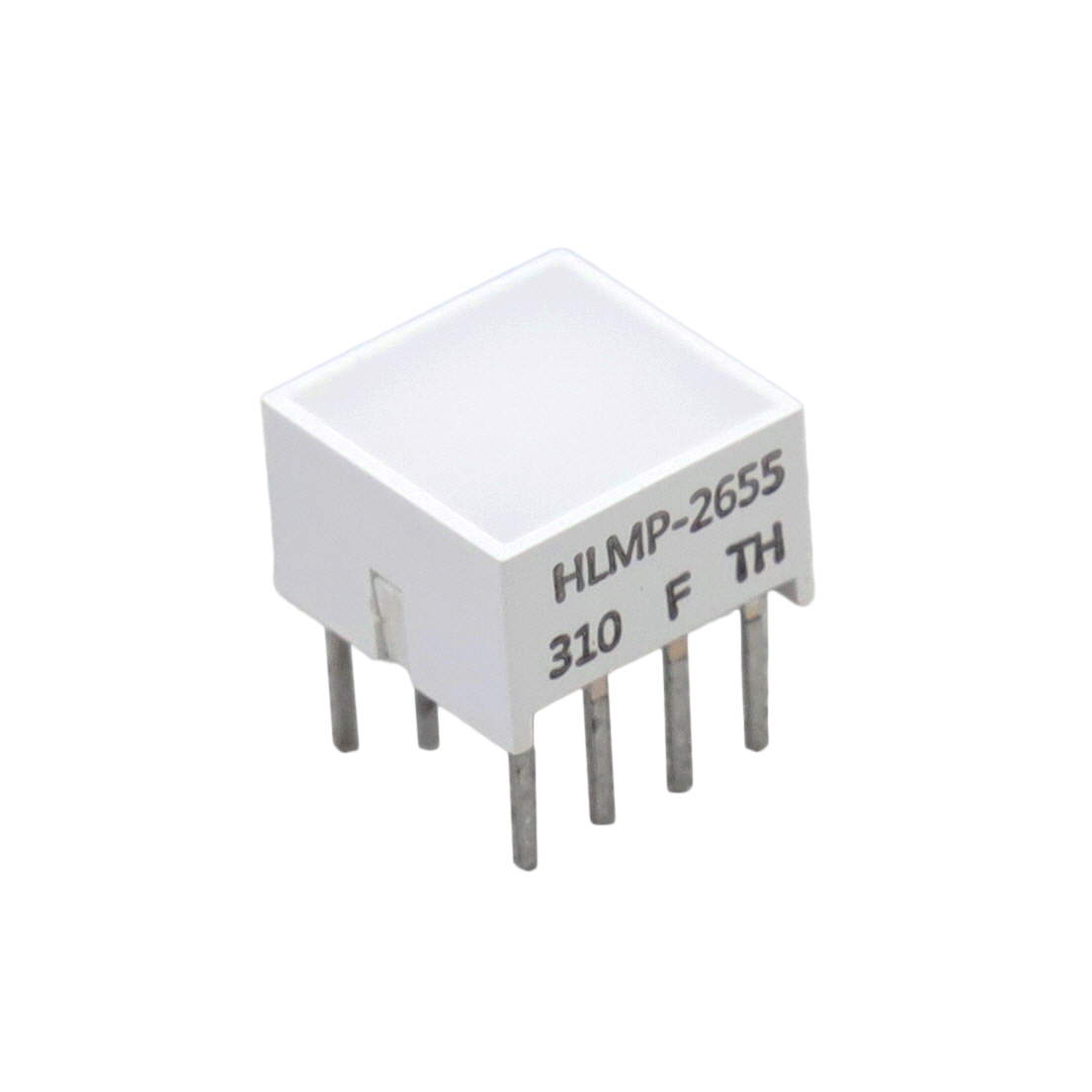

Broadcom Limited HLMP-2655 Series, part number HLMP-2655-EF000, is a single-element red LED bar graph indicator. This through-hole component features a 8.89mm square lens with a flat top, providing a distinct visual output. Operating at a forward voltage of 2.6V and a forward current of 30mA, it delivers a typical luminous intensity of 45mcd at a peak wavelength of 635nm. The DIP package facilitates easy integration into circuit board designs. This component is widely utilized in industrial control systems, instrumentation, and consumer electronics where clear visual status indication is critical.
Additional Information
Series: HLMP-2655RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 30mA |
| Color | Red |
| Voltage Rating | 2.6V |
| Mounting Type | Through Hole |
| Millicandela Rating | 45mcd |
| Configuration | Bar - Single, DIP |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | 635nm |
| Lens Style | Square with Flat Top |
| Lens Size | 8.89mm |
