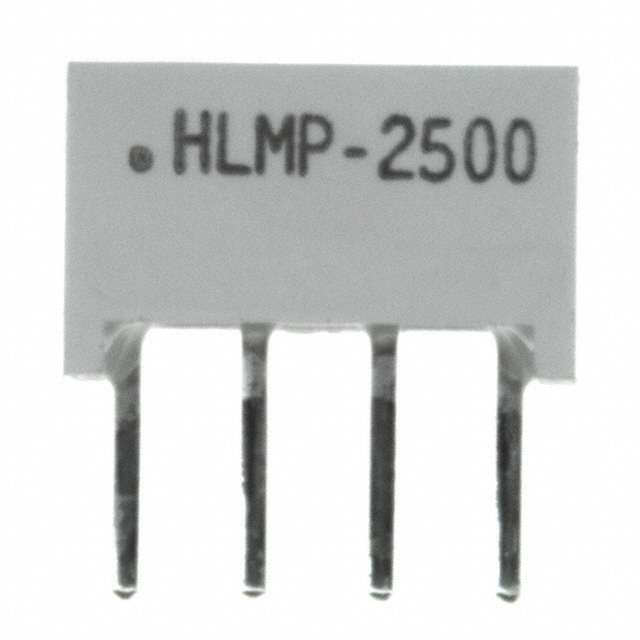

HLMP-2500-FG000
LED LT BAR 8.89X3.81MM SGL GRNManufacturer: Broadcom Limited
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More
The Broadcom Limited HLMP-2500-FG000 is a single, green, bar-style LED circuit board indicator. This component features a rectangular, flat-top lens measuring 8.89mm x 3.81mm, designed for through-hole mounting. It operates with a forward voltage of 2.2V and a typical forward current of 30mA, delivering a luminous intensity of 25mcd at a peak wavelength of 565nm. This device is suitable for applications in industrial automation and consumer electronics where clear visual feedback is required. The HLMP-2500 series offers reliable performance for panel and indicator applications.
Additional Information
Series: HLMP-2500RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 30mA |
| Color | Green |
| Voltage Rating | 2.2V |
| Mounting Type | Through Hole |
| Millicandela Rating | 25mcd |
| Configuration | Bar - Single, SIP |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | 565nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 8.89mm x 3.81mm |
Request a Quote
Clients Also Buy

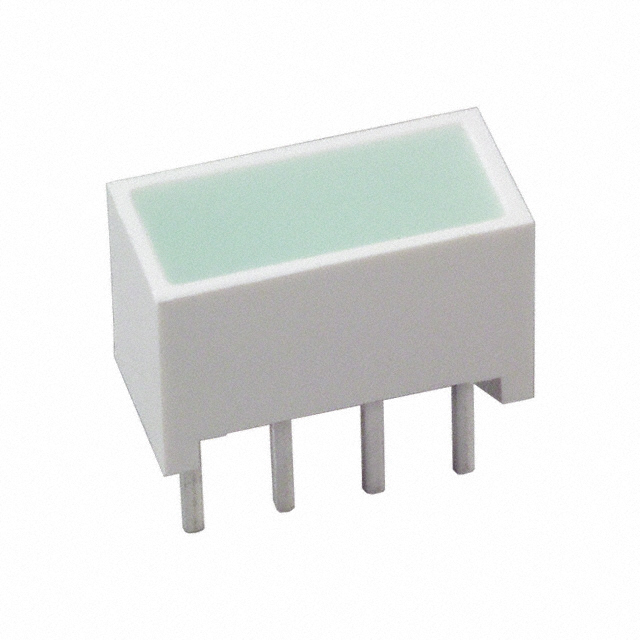

HLMP-2500
LED LT BAR 8.89X3.81MM SGL GREEN

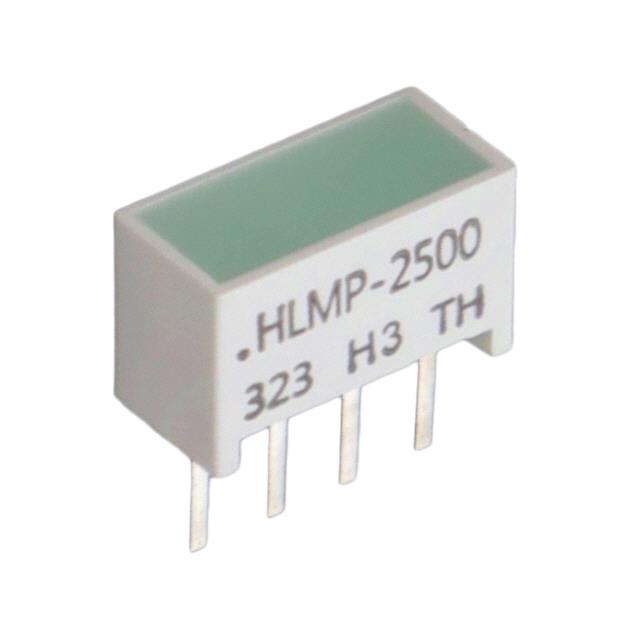

HLMP-2500-GH000
