HLMP-2300-EF000
LED LT BAR 8.89X3.81MM SGL HERManufacturer: Broadcom Limited
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

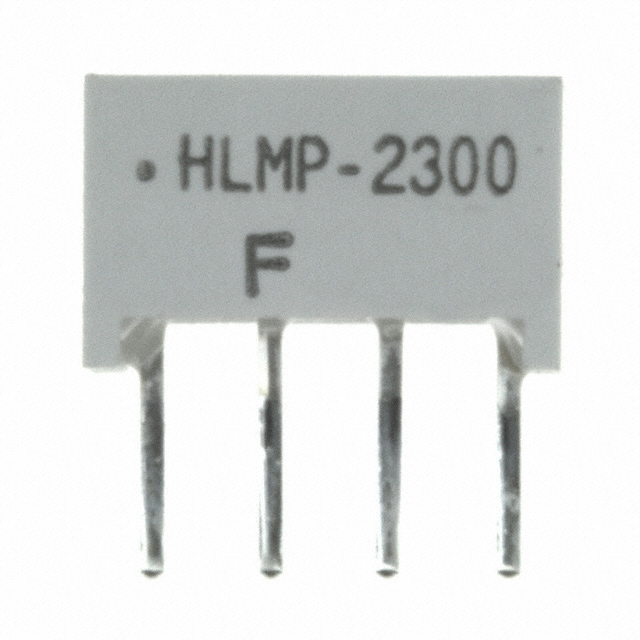

Broadcom Limited HLMP-2300-EF000 is a single, red LED bar graph indicator designed for through-hole mounting. This component, part of the HLMP-2300 series, features a rectangle with a flat top lens measuring 8.89mm x 3.81mm. It operates at a forward voltage of 2.6V and a typical forward current of 30mA, with a peak wavelength of 635nm and a luminous intensity of 23mcd. The Single Inline Package (SIP) configuration is suitable for applications in industrial automation, test and measurement equipment, and automotive dashboards where clear visual status indication is required. This component is supplied in bulk packaging.
Additional Information
Series: HLMP-2300RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 30mA |
| Color | Red |
| Voltage Rating | 2.6V |
| Mounting Type | Through Hole |
| Millicandela Rating | 23mcd |
| Configuration | Bar - Single, SIP |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | 635nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 8.89mm x 3.81mm |
