HDSP-4840-FG000
LED CBI 5.08X1.52MM 10SEG Y VERTManufacturer: Broadcom Limited
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

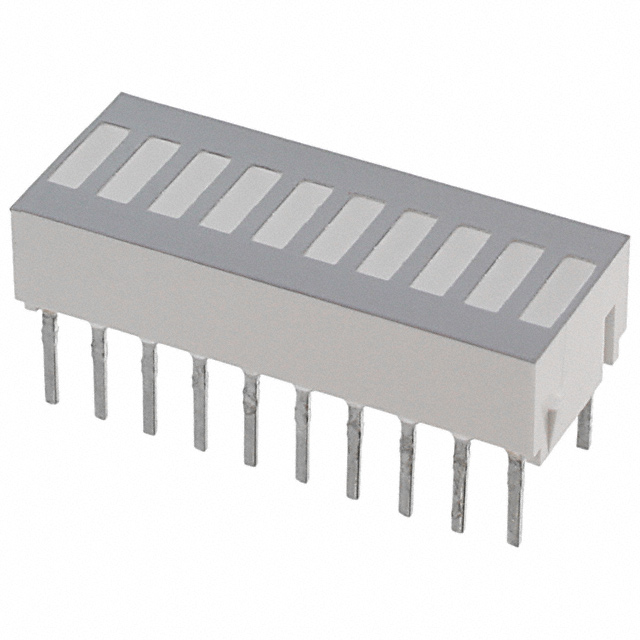

Broadcom Limited HDSP-4840-FG000 is a 10-segment yellow LED bar graph display designed for through-hole mounting. Each segment features a rectangle with a flat top lens, measuring 5.08mm x 1.52mm, and operates at a typical forward voltage of 2.2V and current of 20mA. The display offers a peak wavelength of 585nm and a luminous intensity of 1.9mcd per segment. Its DIP package configuration is suitable for applications in industrial control, instrumentation, and consumer electronics where visual status indication is critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Yellow (x 10) |
| Voltage Rating | 2.2V |
| Mounting Type | Through Hole |
| Millicandela Rating | 1.9mcd |
| Configuration | Bar - 10 Wide, DIP |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | 585nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.08mm x 1.52mm |
