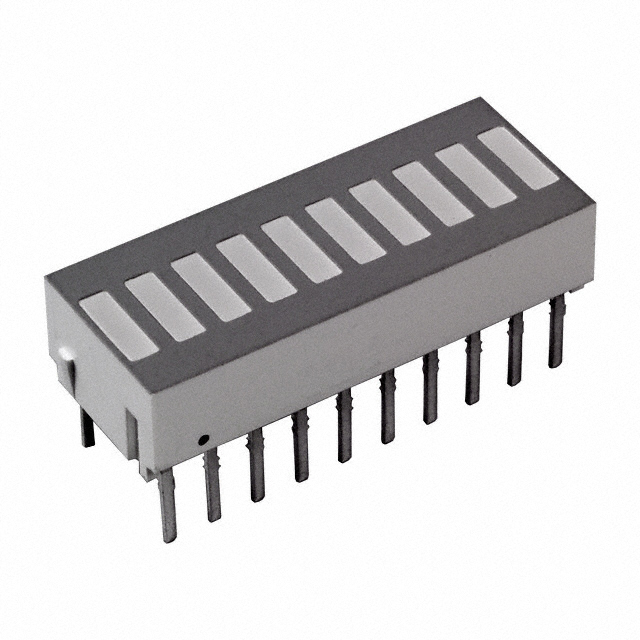

HDSP-4836
LED CBI 5.08X1.52MM 10SEG G/R/YManufacturer: Broadcom Limited
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More
LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Wide, DIP Green (x 2), Red (x 4), Yellow (x 4) 2.1V Green, 2.1V Red, 2.2V Yellow 30mA Green, 30mA Red, 20mA Yellow Rectangle with Flat Top 5.08mm x 1.52mm Through Hole
Additional Information
Series: HDSP-4836RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Current | 30mA Green, 30mA Red, 20mA Yellow |
| Color | Green (x 2), Red (x 4), Yellow (x 4) |
| Voltage Rating | 2.1V Green, 2.1V Red, 2.2V Yellow |
| Mounting Type | Through Hole |
| Millicandela Rating | 1.9mcd Green, 3.5mcd Red, 1.9mcd Yellow |
| Configuration | Bar - 10 Wide, DIP |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | 566nm, 635nm, 583nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.08mm x 1.52mm |
