HDSP-4830-GH000
LED CBI 5.08X1.52MM 10SEG R VERTManufacturer: Broadcom Limited
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

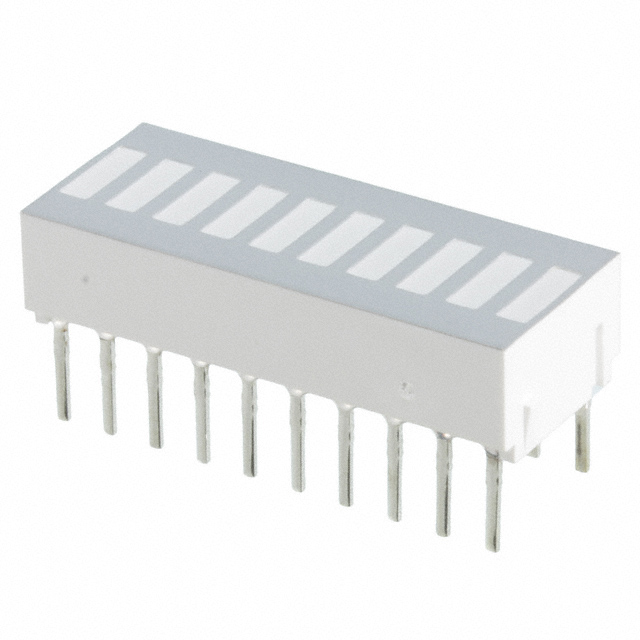

Broadcom Limited HDSP-4830-GH000 is a 10-segment red LED bar graph for circuit board indication. This through-hole component features a rectangular, flat-top lens measuring 5.08mm x 1.52mm. Each segment operates at a typical forward voltage of 2.1V and a forward current of 20mA, with a peak wavelength of 635nm and a typical luminous intensity of 3.5mcd. The DIP package configuration is suitable for automated insertion. This component finds application in industrial control systems, instrumentation, and status indication within various electronic equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Red (x 10) |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole |
| Millicandela Rating | 3.5mcd |
| Configuration | Bar - 10 Wide, DIP |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | 635nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.08mm x 1.52mm |
