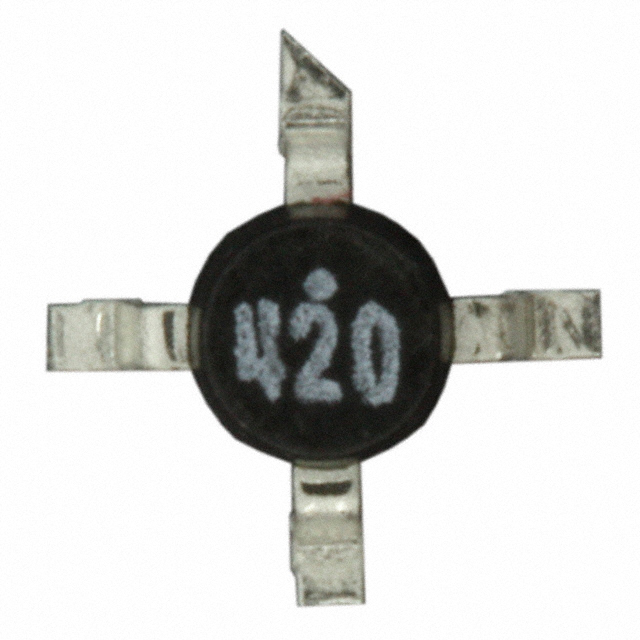

AT-42086-TR1G
RF TRANS NPN 12V 8GHZ 86 PLASTICManufacturer: Broadcom Limited
Categories: Bipolar RF Transistors
Quality Control: Learn More
Broadcom Limited AT-42086-TR1G is an NPN bipolar RF transistor designed for high-frequency applications. This surface mount component operates with a collector-emitter breakdown voltage of 12V and a maximum collector current of 80mA. It features a transition frequency of 8GHz and offers a gain range of 9dB to 13dB. The noise figure is specified between 1.9dB and 3.5dB at frequencies from 2GHz to 4GHz. With a maximum power dissipation of 500mW, the AT-42086-TR1G is suitable for demanding RF circuits. Its SOT-86 package, supplied in Tape & Reel, makes it ideal for automated assembly in telecommunications and wireless infrastructure. The transistor's high transition frequency and gain characteristics are beneficial for amplifier and oscillator designs operating in the microwave frequency spectrum.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-86 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Gain | 9dB ~ 13dB |
| Power - Max | 500mW |
| Current - Collector (Ic) (Max) | 80mA |
| Voltage - Collector Emitter Breakdown (Max) | 12V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 35mA, 8V |
| Frequency - Transition | 8GHz |
| Noise Figure (dB Typ @ f) | 1.9dB ~ 3.5dB @ 2GHz ~ 4GHz |
| Supplier Device Package | 86 Plastic |
