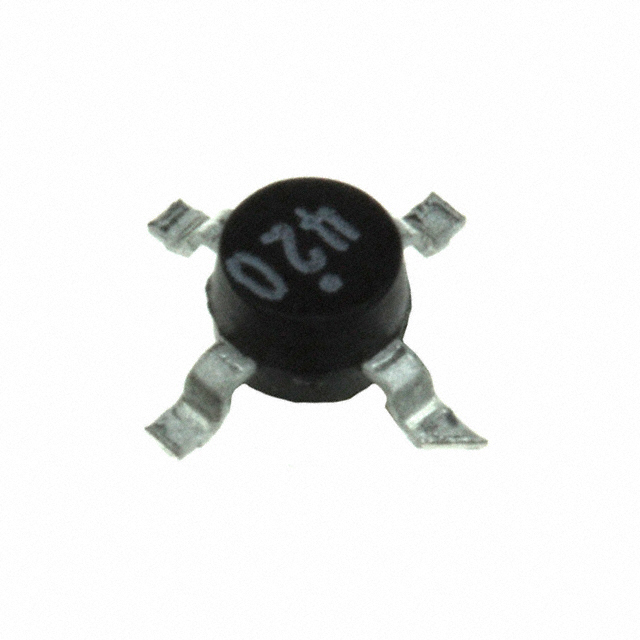

AT-42086-BLKG
RF TRANS NPN 12V 8GHZ 86 PLASTICManufacturer: Broadcom Limited
Categories: Bipolar RF Transistors
Quality Control: Learn More
Broadcom Limited AT-42086-BLKG is an NPN bipolar RF transistor designed for high-frequency applications. This surface mount component operates with a collector-emitter breakdown voltage of 12V and a maximum collector current of 80mA. Featuring a transition frequency of 8GHz, it delivers a gain ranging from 9dB to 13dB. The noise figure is typically between 1.9dB and 3.5dB across a frequency range of 2GHz to 4GHz. With a maximum power dissipation of 500mW and an operating junction temperature of 150°C, it is housed in a SOT-86 package. This component is suitable for use in wireless infrastructure and other demanding RF systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-86 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Gain | 9dB ~ 13dB |
| Power - Max | 500mW |
| Current - Collector (Ic) (Max) | 80mA |
| Voltage - Collector Emitter Breakdown (Max) | 12V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 35mA, 8V |
| Frequency - Transition | 8GHz |
| Noise Figure (dB Typ @ f) | 1.9dB ~ 3.5dB @ 2GHz ~ 4GHz |
| Supplier Device Package | 86 Plastic |
