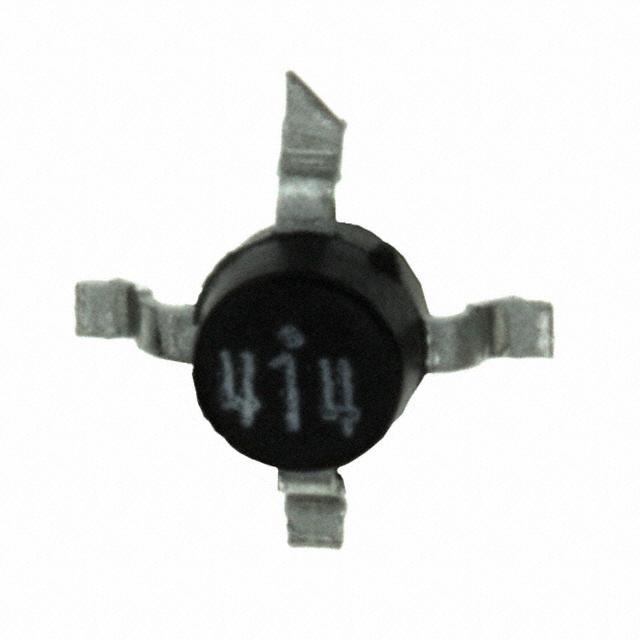

AT-41486-BLKG
RF TRANS NPN 12V 8GHZ 86 PLASTICManufacturer: Broadcom Limited
Categories: Bipolar RF Transistors
Quality Control: Learn More
Broadcom Limited AT-41486-BLKG is an NPN bipolar RF transistor designed for high-frequency applications. This surface-mount component operates with a 12V collector-emitter breakdown voltage and a maximum collector current of 60mA. It features a transition frequency of 8GHz and offers a gain range of 9dB to 18dB. The noise figure is typically between 1.4dB and 3dB across the 1GHz to 4GHz frequency spectrum. With a maximum power dissipation of 500mW and an operating junction temperature of 150°C, it is suitable for demanding environments. The SOT-86 package is supplied in bulk packaging. This component is commonly utilized in wireless infrastructure, satellite communications, and defense systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-86 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Gain | 9dB ~ 18dB |
| Power - Max | 500mW |
| Current - Collector (Ic) (Max) | 60mA |
| Voltage - Collector Emitter Breakdown (Max) | 12V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 10mA, 8V |
| Frequency - Transition | 8GHz |
| Noise Figure (dB Typ @ f) | 1.4dB ~ 3dB @ 1GHz ~ 4GHz |
| Supplier Device Package | 86 Plastic |
