AT-32011-TR1
RF TRANS NPN 5.5V SOT143Manufacturer: Broadcom Limited
Categories: Bipolar RF Transistors
Quality Control: Learn More

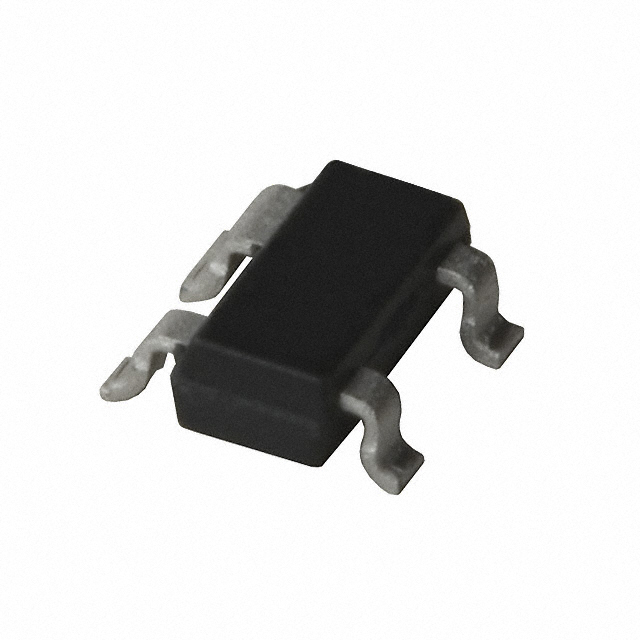

Broadcom Limited AT-32011-TR1 is an NPN bipolar RF transistor designed for high-frequency applications. This component features a 5.5V collector-emitter breakdown voltage and a maximum collector current of 32mA. It delivers a typical gain range of 12.5dB to 14dB with a low noise figure, typically 1dB to 1.3dB at 900MHz. The transistor is housed in a SOT-143 surface-mount package, also known as TO-253-4 or TO-253AA, suitable for automated assembly. With a maximum power dissipation of 200mW and an operating junction temperature up to 150°C, the AT-32011-TR1 is well-suited for use in wireless communication systems, cellular infrastructure, and other RF front-end circuitry. It is supplied in Tape & Reel packaging for efficient manufacturing processes.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-253-4, TO-253AA |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Gain | 12.5dB ~ 14dB |
| Power - Max | 200mW |
| Current - Collector (Ic) (Max) | 32mA |
| Voltage - Collector Emitter Breakdown (Max) | 5.5V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 2mA, 2.7V |
| Frequency - Transition | - |
| Noise Figure (dB Typ @ f) | 1dB ~ 1.3dB @ 900MHz |
| Supplier Device Package | SOT-143 |
