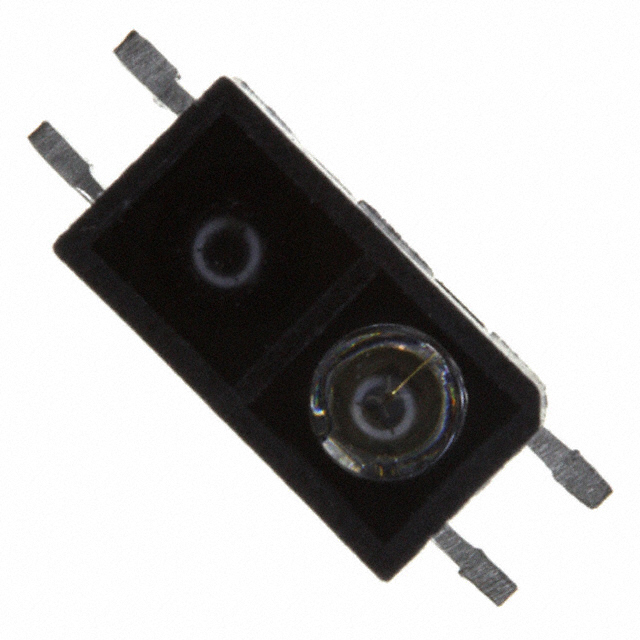

APDS-9101-L21
SENSOR REFLECTIVE FAST SW 4SMDManufacturer: Broadcom Limited
Categories: Analog Output
Quality Control: Learn More
The Broadcom Limited APDS-9101-L21 is a reflective optical sensor featuring a phototransistor output. This component utilizes a 4-SMD, Flat Leads package for surface mounting. With a sensing distance of 0.472 inches (12mm), it is designed for applications requiring proximity detection or object presence sensing through reflection. The sensor offers rapid response times, with typical values of 3µs and 4µs. Key electrical specifications include a maximum collector current (Ic) of 20 mA and a maximum DC forward current (If) of 60 mA, with a collector-emitter breakdown voltage of 30 V. This device is commonly employed in industrial automation, consumer electronics, and automotive systems. The APDS-9101-L21 is supplied on a Tape & Reel (TR) for automated assembly processes.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Flat Leads |
| Output Type | Phototransistor |
| Sensing Distance | 0.472"" (12mm) |
| Sensing Method | Reflective |
| Mounting Type | Surface Mount |
| Response Time | 3µs, 4µs |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 60 mA |
Request a Quote
Clients Also Buy

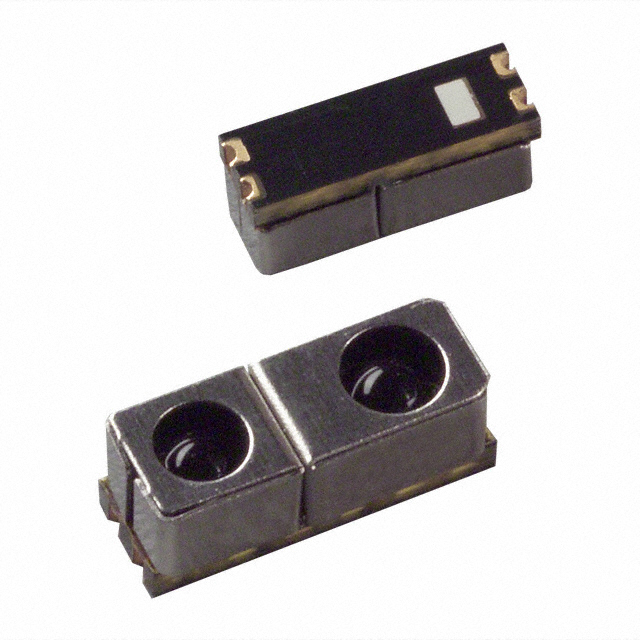

HSDL-9100-021
PROXIMITY SENSOR REFL MINI SMD

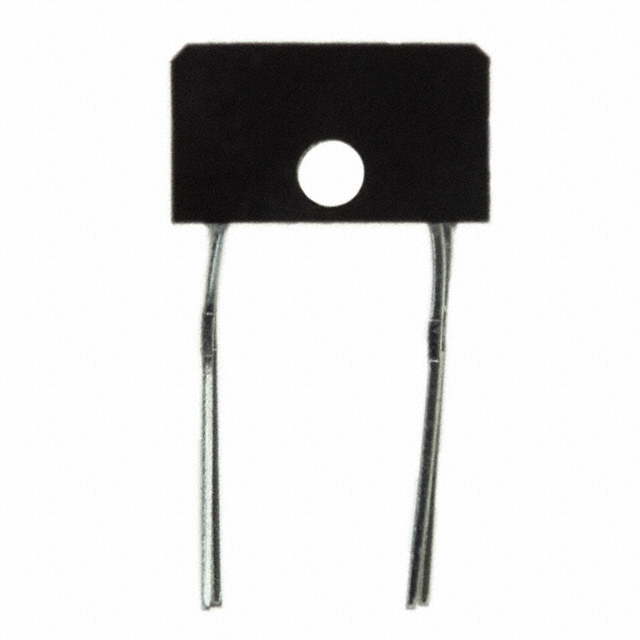

APDS-9103-L22
SENSOR REFLECTIVE OFFICE 4LEAD

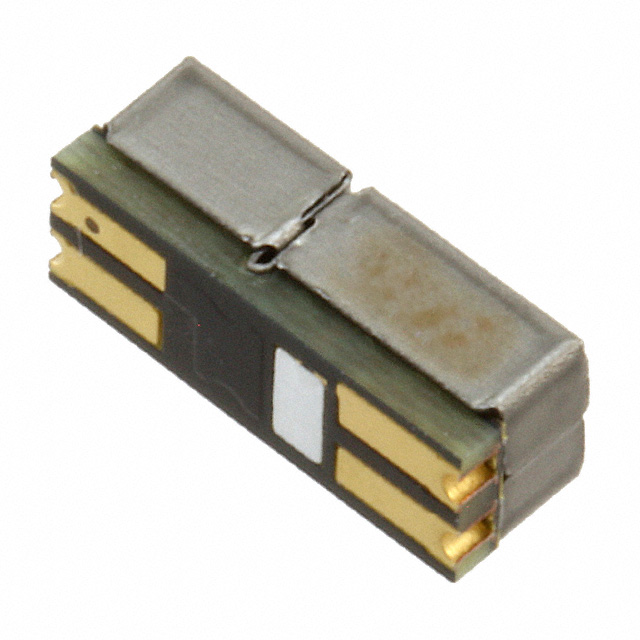

HSDL-9100-024
