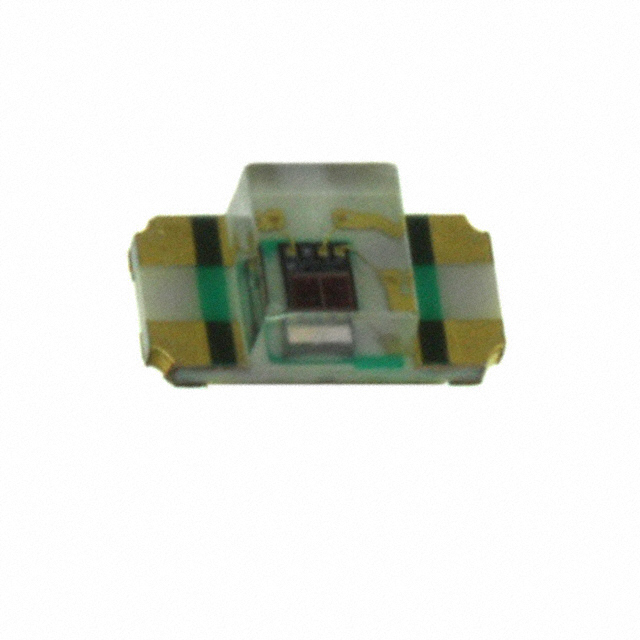

APDS-9004-020
SENSOR OPT 620NMAMB 1206Manufacturer: Broadcom Limited
Categories: Ambient Light, IR, UV Sensors
Quality Control: Learn More
The Broadcom Limited APDS-9004-020 is a surface-mount optical sensor designed for ambient light detection. This component operates with a supply voltage range of 2.4V to 5.5V and outputs a current proportional to the incident light. Its spectral sensitivity peaks at 620nm, making it suitable for applications requiring detection of red light or specific ambient light conditions. The device is housed in a compact 1206 (3216 Metric) package, compatible with standard surface-mount assembly processes. Operating within an ambient temperature range of -40°C to 85°C, the APDS-9004-020 is utilized in various consumer electronics and industrial control systems. Supplied on tape and reel, this sensor is a robust solution for light sensing needs in demanding environments.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Wavelength | 620nm |
| Output Type | Current |
| Mounting Type | Surface Mount |
| Type | Ambient |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.4V ~ 5.5V |
| Supplier Device Package | 4-Pin ChipLED |
| Proximity Detection | No |
