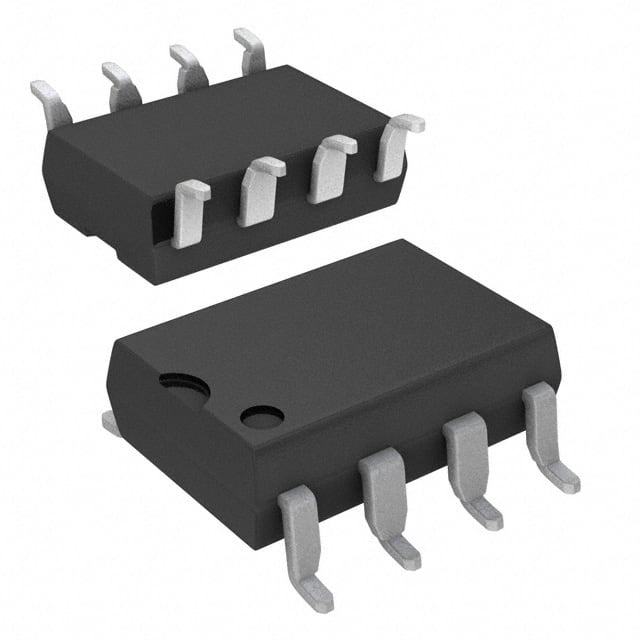

HCPL-7560-500
IC SIGMA-DELTA MOD 8BIT 8SMDManufacturer: Broadcom Limited
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Broadcom Limited HCPL-7560-500 is an 8-bit Sigma-Delta modulator designed for high-precision signal conditioning. This device features a single supply voltage range of 4.5V to 5.5V and operates across an ambient temperature range of -40°C to 85°C. Packaged in an 8-SMD, Gull Wing configuration suitable for surface mounting, the HCPL-7560-500 offers four channels for versatile signal processing. Its Sigma-Delta modulation architecture is well-suited for applications requiring accurate analog-to-digital conversion in industrial automation, motor control, and power monitoring systems. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Type | Sigma-Delta Modulator |
| Data Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Sampling Rate (Per Second) | - |
| Resolution (Bits) | 8 b |
| Voltage Supply Source | Single Supply |
| Supplier Device Package | 8-SMD |
| Number of Channels | 4 |
