BXEN-65E-11L-3A-00-0-0
LED COOL WHITE 6500K 2835Manufacturer: Bridgelux
Categories: LED White Lighting
Quality Control: Learn More

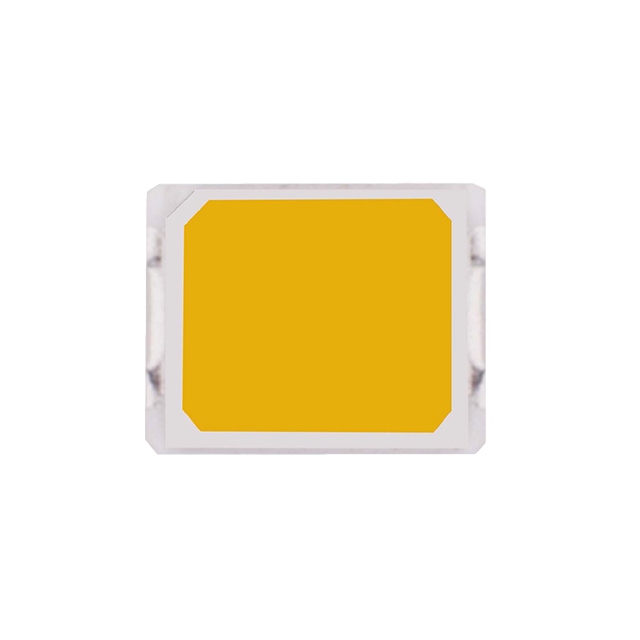

The Bridgelux BXEN-65E-11L-3A-00-0-0 is a cool white LED component with a correlated color temperature (CCT) of 6500K. Featuring a typical forward voltage of 3V and designed for surface mounting, this component utilizes the 1113 (2835 Metric) package. It operates with a test current of 60mA, delivering a typical luminous flux of 22 lumens at 85°C with a luminous efficacy of 125 lm/W at the test current. The LED offers a wide viewing angle of 120° and a CRI of 80. Its compact dimensions are 0.108" L x 0.134" W (2.74mm x 3.40mm), with a maximum seated height of 0.028" (0.70mm). This component is suitable for applications in general lighting and automotive lighting. It is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1113 (2835 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.108"" L x 0.134"" W (2.74mm x 3.40mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3V |
| Current - Test | 60mA |
| Viewing Angle | 120° |
| Current - Max | 80mA |
| Supplier Device Package | 2835 |
| Lumens/Watt @ Current - Test | 125 lm/W |
| Height - Seated (Max) | 0.028"" (0.70mm) |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 22lm (Typ) |
Request a Quote
Clients Also Buy

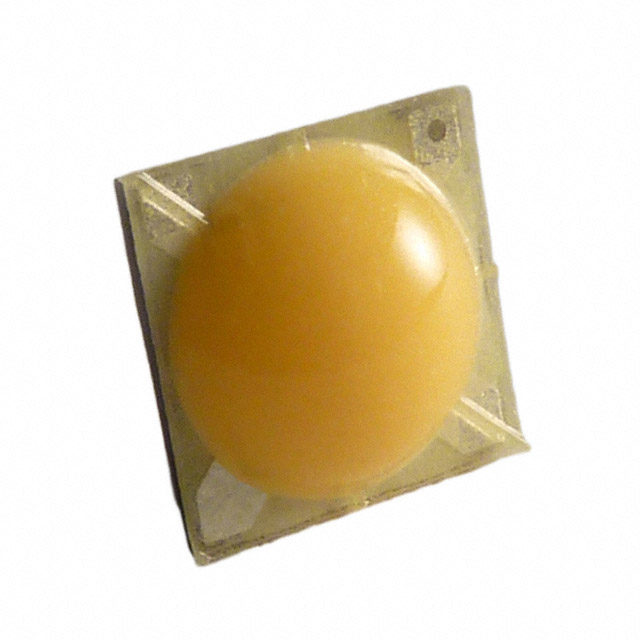

BXPX-27G0400-B-0300
