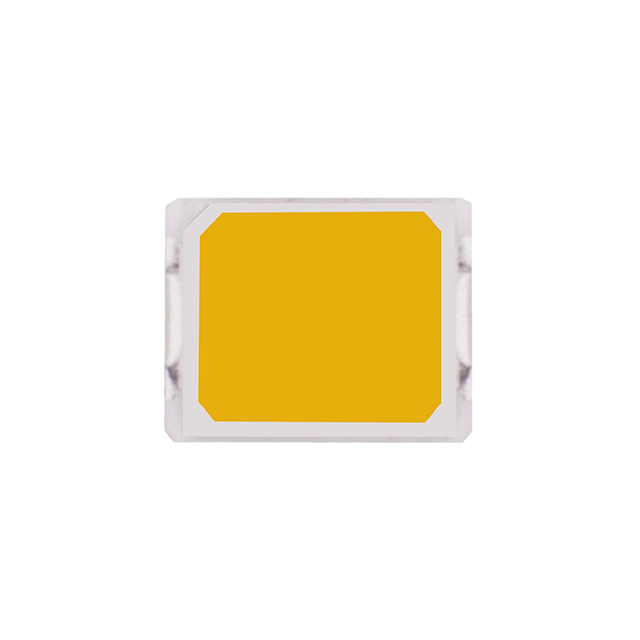

BXEN-30E-11L-3C-00-0-0
LED GEN2 WARM WHT 3000K 2835Manufacturer: Bridgelux
Categories: LED White Lighting
Quality Control: Learn More
Bridgelux Gen2 Series BXEN-30E-11L-3C-00-0-0 is a warm white LED designed for general lighting applications. This component features a Correlated Color Temperature (CCT) of 3000K and a Color Rendering Index (CRI) of 80, delivering a typical luminous flux of 27 lumens at 60mA test current, with a luminous efficacy of 164 lm/W. The LED operates at a forward voltage of 2.75V and supports a maximum drive current of 80mA. Its compact 2835 metric package (1113) measures 2.74mm x 3.40mm with a seated height of 0.70mm. The viewing angle is 116 degrees. This product is supplied on tape and reel, suitable for surface mounting. Applications include residential, commercial, and architectural lighting systems.
Additional Information
Series: Gen2RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1113 (2835 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.108"" L x 0.134"" W (2.74mm x 3.40mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.75V |
| Current - Test | 60mA |
| Viewing Angle | 116° |
| Current - Max | 80mA |
| Supplier Device Package | 2835 |
| Lumens/Watt @ Current - Test | 164 lm/W |
| Height - Seated (Max) | 0.028"" (0.70mm) |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 27lm (Typ) |
