BXIR-85120AA-0900
IR 3535 SMD, 0900MW MIN, 850NM,Manufacturer: Bridgelux
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Bridgelux BXIR-85120AA-0900 is an 850nm infrared (IR) emitter designed for surface mount applications. This component features a forward voltage (Vf) of 1.9V and a maximum DC forward current (If) of 1.5A. It delivers a minimum radiant intensity (Ie) of 270mW/sr at 1A with a wide 120° viewing angle. The 3-SMD, No Lead package is suitable for automated assembly processes. Operating within an ambient temperature range of -40°C to 85°C, this emitter is commonly utilized in security and surveillance systems, industrial automation, and machine vision applications requiring efficient near-infrared illumination.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 3-SMD, No Lead |
| Wavelength | 850nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Viewing Angle | 120° |
| Current - DC Forward (If) (Max) | 1.5A |
| Radiant Intensity (Ie) Min @ If | 270mW/sr @ 1A |
Request a Quote
Clients Also Buy

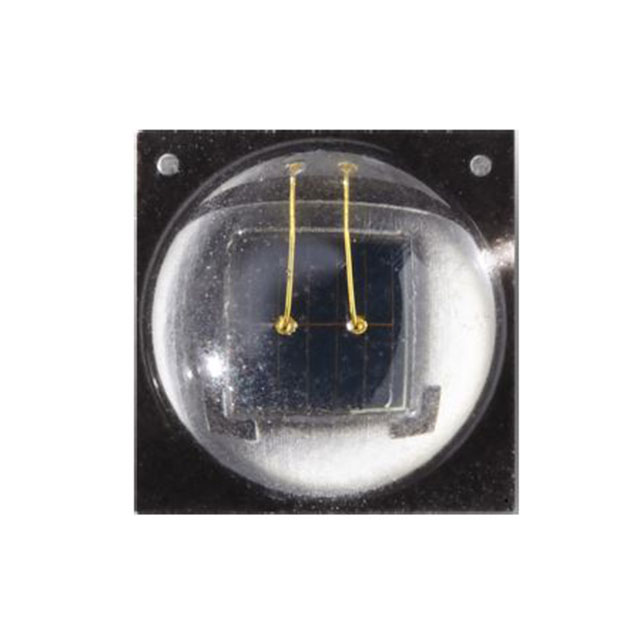

BXIR-85120AA-0800
EMITTER IR 850NM SMD

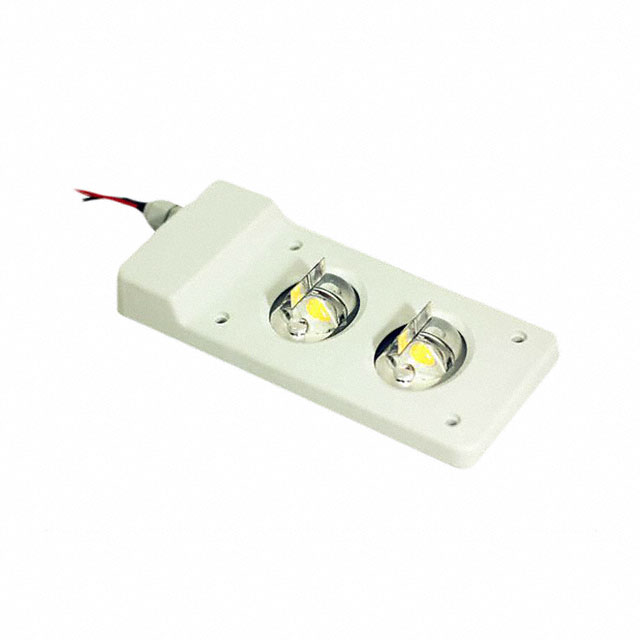

OLMA-40E000-A01A-AA000
