BXRV-TR-2750G-1KA0-A-23-S2
LED COB VESTA WHITE ROUND 5000KManufacturer: Bridgelux
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

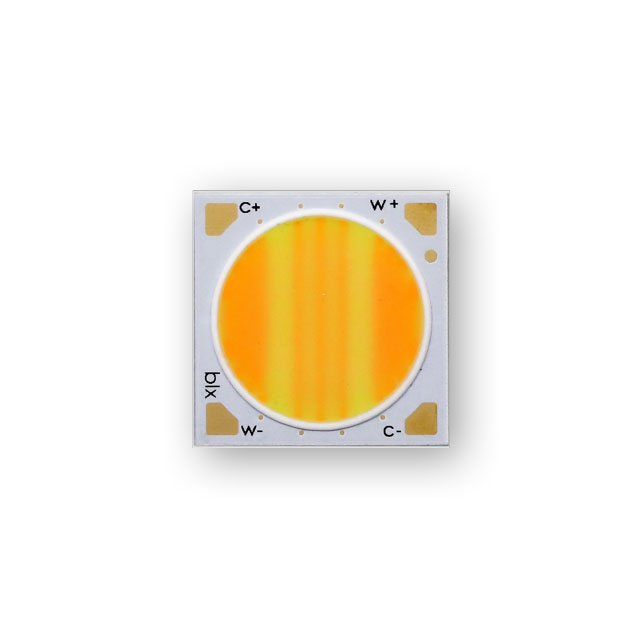

LED Lighting COBs Engines Modules Chip On Board (COB) Vesta™ SE Tunable White Gen 2 White, Warm / White, Cool Round
Additional Information
Series: Vesta™ SE Tunable White Gen 2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: Last Time BuyPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Holder |
| Packaging | Tray |
| Color | White, Warm / White, Cool |
| Wavelength | - |
| Size / Dimension | 49.20mm Dia |
| Type | Chip On Board (COB) |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 52.1V Warm White, 52.4V Cool White |
| Height | 3.80mm |
| Current - Test | 1.05A |
| Viewing Angle | 130° |
| Lens Type | Flat |
| Current - Max | 1.8A |
| Lumens/Watt @ Current - Test | 113 lm/W Warm White, 125 lm/W Cool White |
| CCT (K) | 2700K 3-Step MacAdam Ellipse, 5000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 28.50mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 6182lm Warm White, 6878lm Cool White |
