BXRV-TR-1840G-10A0-A-25-S2

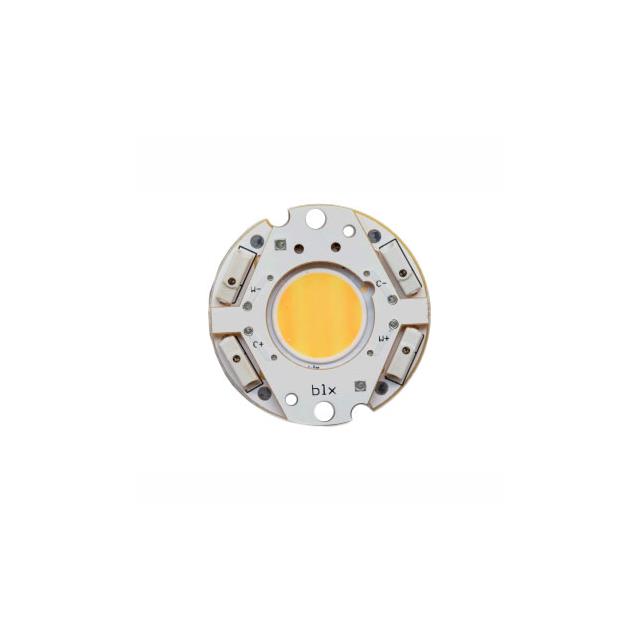

LED COB VESTA WHITE ROUND 1800KManufacturer: Bridgelux
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
LED Lighting COBs Engines Modules Chip On Board (COB) Vesta™ SE Tunable White Gen 2 White, Warm / White, Neutral Round
Additional Information
Series: Vesta™ SE Tunable White Gen 2RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Last Time BuyPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Holder |
| Packaging | Tray |
| Color | White, Warm / White, Neutral |
| Wavelength | - |
| Size / Dimension | 36.20mm Dia |
| Type | Chip On Board (COB) |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 17.6V Warm White, 18V Neutral White |
| Height | 3.80mm |
| Current - Test | 500mA |
| Viewing Angle | 130° |
| Lens Type | Flat |
| Current - Max | 700mA |
| Lumens/Watt @ Current - Test | 96 lm/W Warm White, 118 lm/W Neutral White |
| CCT (K) | 1800K 5-Step MacAdam Ellipse, 4000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 10.30mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 573lm Warm White, 996lm Neutral White |
