BXRH-40G3000-D-23
LED COB H9 ARR NEUT WHT SQ 4000KManufacturer: Bridgelux
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
The Bridgelux H9 Array BXRH-40G3000-D-23 is a Chip On Board (COB) LED module designed for high-performance lighting solutions. This neutral white unit emits light with a correlated color temperature of 4000K, specified within a 3-Step MacAdam Ellipse for tight color uniformity. It features a high Color Rendering Index (CRI) of 90, ensuring accurate color representation. The module has a square configuration with a 9.50mm diameter Light Emitting Surface (LES) and a height of 1.70mm. Operating at a test current of 1A, it delivers a typical luminous flux of 3221 lumens with a luminous efficacy of 88 lm/W at 25°C. The maximum forward current is rated at 1.4A, with a typical forward voltage of 36.6V. The viewing angle is 112°, and it utilizes a flat lens type. This component is suitable for applications in general lighting, architectural lighting, and retail display lighting. It is supplied in tube packaging.
Additional Information
Series: H9 ArrayRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 15.85mm L x 15.85mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 36.6V |
| Height | 1.70mm |
| Current - Test | 1A |
| Viewing Angle | 112° |
| Lens Type | Flat |
| Current - Max | 1.4A |
| Lumens/Watt @ Current - Test | 88 lm/W |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 9.50mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 3221lm (Typ) |
Request a Quote
Clients Also Buy
BXRH-27E3000-D-23
LED COB H9 ARRAY WM WHT SQ 2700K

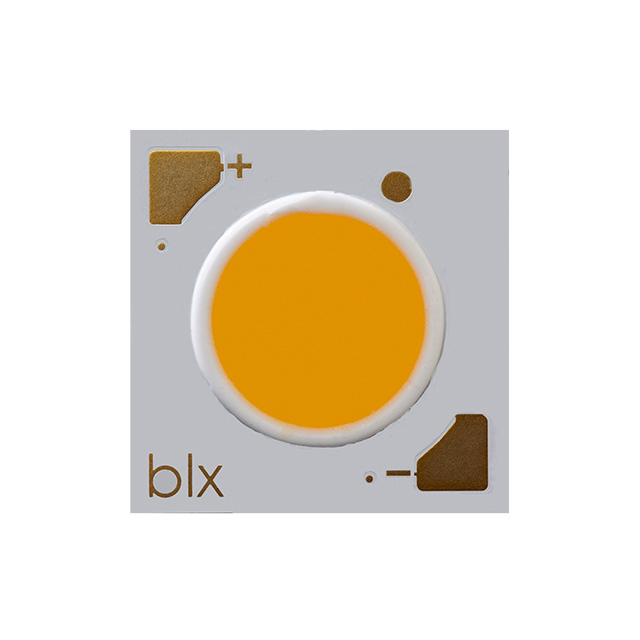

BXRH-27G3000-D-23
