BXRH-30G6000-G-23
LED COB H12 ARRAY WHT SQ 3000KManufacturer: Bridgelux
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

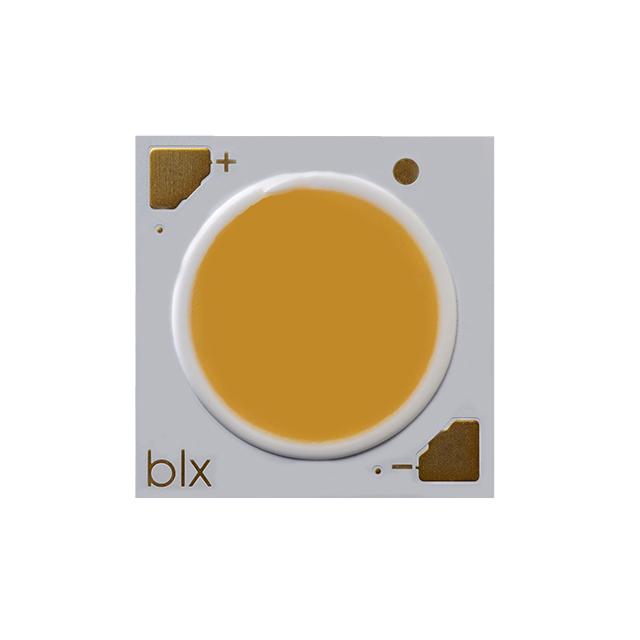

Bridgelux H12 Array BXRH-30G6000-G-23 is a Chip On Board (COB) LED module delivering 5380 lumens typical at 36.6V forward voltage. This component features a 12.60mm diameter Light Emitting Surface (LES) and a square configuration with a warm white color temperature of 3000K, specified within a 3-step MacAdam ellipse. It offers a high Color Rendering Index (CRI) of 90, ensuring excellent color accuracy for demanding applications. The module is rated for a maximum current of 2.2A, with typical performance measured at 1.75A and 25°C, yielding 84 lumens per watt. Its flat lens type and 112° viewing angle contribute to uniform light distribution. Typical applications include general illumination, architectural lighting, and stage lighting. The component is supplied in tubes. Dimensions are 17.85mm L x 17.85mm W with a height of 1.70mm.
Additional Information
Series: H12 ArrayRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 17.85mm L x 17.85mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 36.6V |
| Height | 1.70mm |
| Current - Test | 1.75A |
| Viewing Angle | 112° |
| Lens Type | Flat |
| Current - Max | 2.2A |
| Lumens/Watt @ Current - Test | 84 lm/W |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 12.60mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 5380lm (Typ) |
