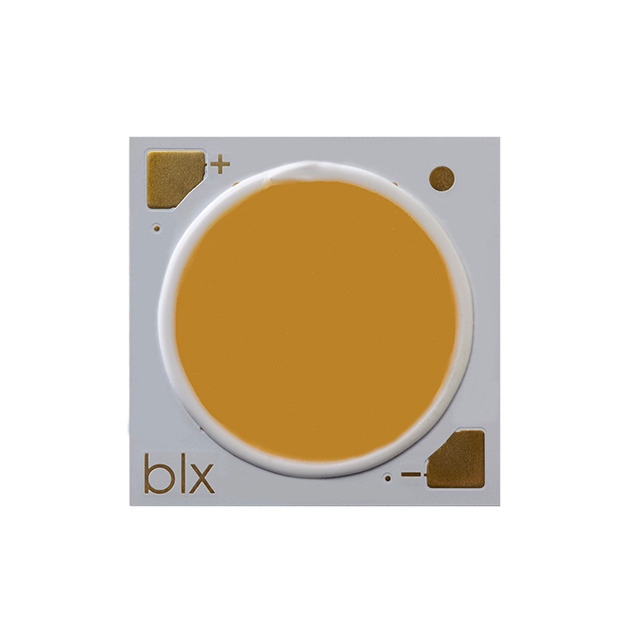

BXRH-27E8000-J-23
LED COB H15 ARRAY WHT SQU 2700KManufacturer: Bridgelux
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Bridgelux H15 Array LED COB, identified by part number BXRH-27E8000-J-23, offers a warm white illumination with a Correlated Color Temperature (CCT) of 2700K, precisely controlled within a 3-Step MacAdam Ellipse. This square-configured Chip On Board (COB) module features an 80 CRI for accurate color reproduction. Designed for high-output applications, it delivers a typical luminous flux of 8693lm at a test current of 2.5A, achieving 95 lm/W efficiency. The Light Emitting Surface (LES) diameter is 15.10mm, with a compact module dimension of 19.00mm x 19.00mm and a height of 1.70mm. The forward voltage (Vf) is typically 36.6V, with a maximum operating current of 3.5A. The BXRH-27E8000-J-23 is suitable for demanding lighting solutions across various industries requiring efficient and high-quality light sources.
Additional Information
Series: H15 ArrayRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 19.00mm L x 19.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 36.6V |
| Height | 1.70mm |
| Current - Test | 2.5A |
| Viewing Angle | 112° |
| Lens Type | Flat |
| Current - Max | 3.5A |
| Lumens/Watt @ Current - Test | 95 lm/W |
| CCT (K) | 2700K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 15.10mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 8693lm (Typ) |
