BXRH-27E1000-C-23
LED COB H6 ARRAY WM WHT SQ 2700KManufacturer: Bridgelux
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Bridgelux H6 Array BXRH-27E1000-C-23 is a Chip On Board (COB) LED module designed for high-performance lighting applications. This warm white component offers a color temperature of 2700K, specified within a 3-step MacAdam ellipse for exceptional color consistency. Featuring a square light-emitting surface (LES) of 6.60mm diameter and a height of 1.70mm, the module measures 13.35mm x 13.35mm. It delivers a typical luminous flux of 1304 lumens at a test current of 750mA, with a luminous efficacy of 95 lm/W at this current. The forward voltage is typically 18.3V, and the maximum current handling is 1.05A. With a CRI of 80 and a wide viewing angle of 112°, this Bridgelux COB is suitable for general lighting, architectural lighting, and retail display applications. The component is supplied in tube packaging.
Additional Information
Series: H6 ArrayRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 13.35mm L x 13.35mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 18.3V |
| Height | 1.70mm |
| Current - Test | 750mA |
| Viewing Angle | 112° |
| Lens Type | Flat |
| Current - Max | 1.05A |
| Lumens/Watt @ Current - Test | 95 lm/W |
| CCT (K) | 2700K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 6.60mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 1304lm (Typ) |
Request a Quote
Clients Also Buy

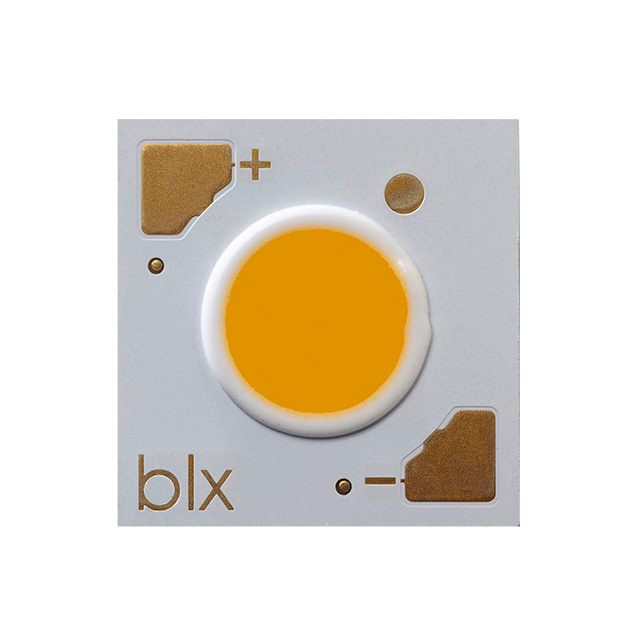

BXRH-27G1000-C-23
