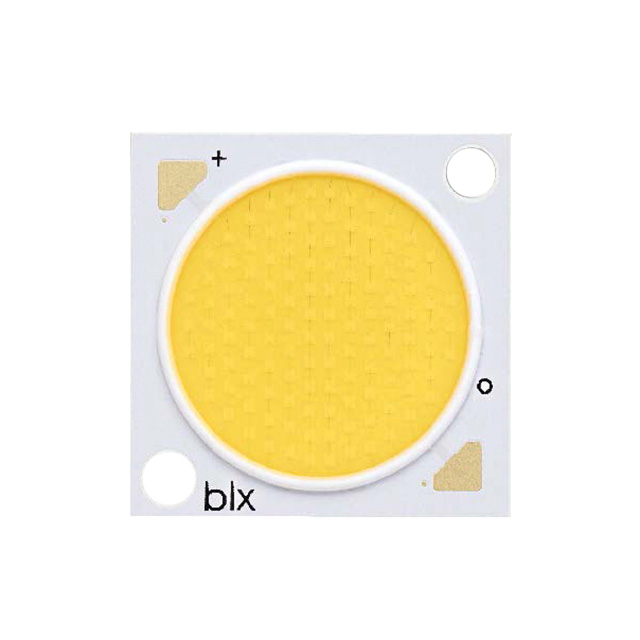

BXRE-57E4001-B-73
LED COB V18 CL WHT SQUARE 5700KManufacturer: Bridgelux
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
LED Lighting COBs Engines Modules Chip On Board (COB) Gen 7 V18 Array White, Cool Square
Additional Information
Series: Gen 7 V18 ArrayRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 24.00mm L x 24.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 34V |
| Height | 1.70mm |
| Current - Test | 900mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1.8A |
| Lumens/Watt @ Current - Test | 155 lm/W |
| CCT (K) | 5700K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 19.20mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 4746lm (Typ) |
