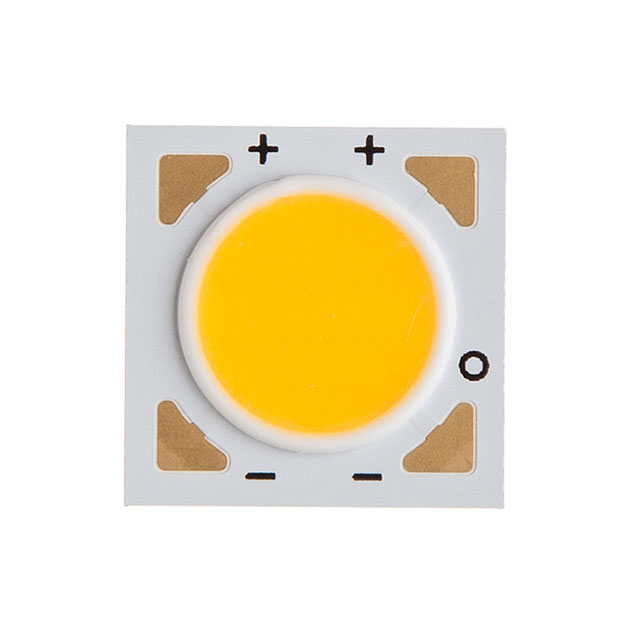

BXRE-50C0800-B-04
LED COB V8 ARR COOL WHT SQ 5000KManufacturer: Bridgelux
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
The Bridgelux V8 Array BXRE-50C0800-B-04 is a Chip On Board (COB) LED module designed for high-performance lighting applications. This cool white (5000K) square array features a typical luminous flux of 850lm at 350mA test current and a forward voltage of 17.8V. It achieves 136 lm/W at the test current, with a maximum operating current of 700mA. The light emitting surface (LES) diameter is 8.10mm, and the overall module dimensions are 12.50mm x 12.50mm with a height of 1.70mm. The color rendering index (CRI) is 70, and the color is specified within a 4-step MacAdam ellipse. This component is suitable for use in general lighting, architectural lighting, and commercial luminaire designs. It is supplied in trays.
Additional Information
Series: V8 ArrayRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 12.50mm L x 12.50mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 17.8V |
| Height | 1.70mm |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 700mA |
| Lumens/Watt @ Current - Test | 136 lm/W |
| CCT (K) | 5000K 4-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | 8.10mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 850lm (Typ) |
Request a Quote
Clients Also Buy
BXRE-27E0800-A-03
LED COB V8 ARRAY WM WHT SQ 2700K

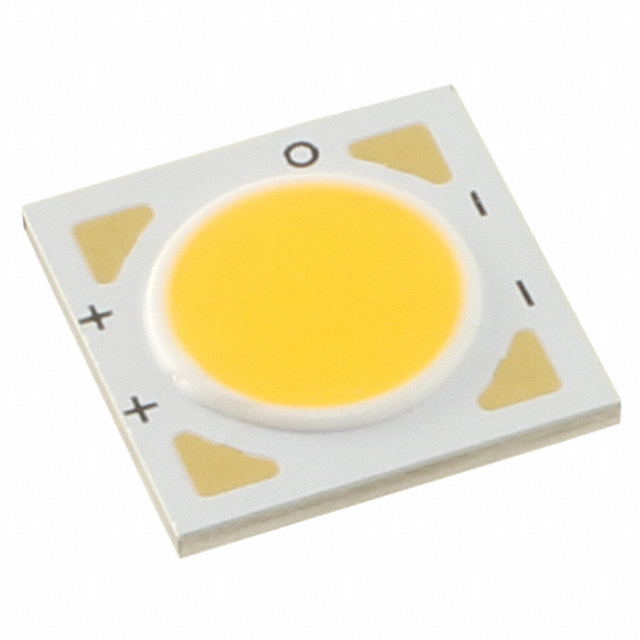

BXRE-27E0800-A-23
