BXRE-40G3001-D-23
LED COB V15 ARRAY WHT SQU 4000KManufacturer: Bridgelux
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

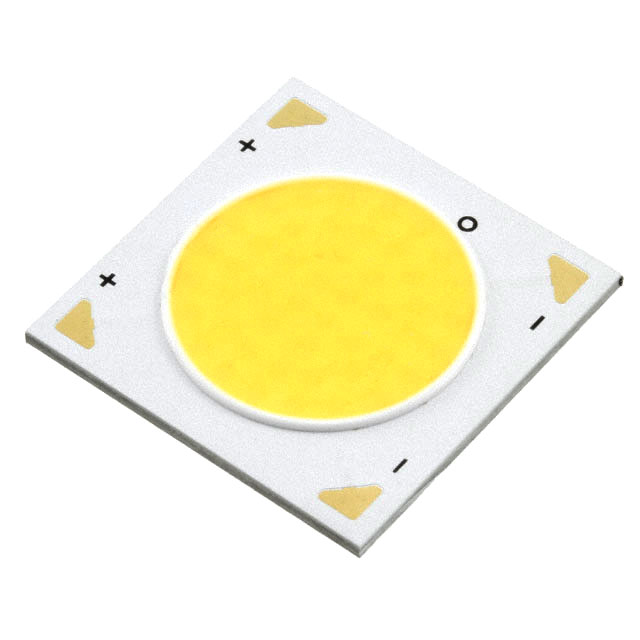

Bridgelux V15 Array LED COB, part number BXRE-40G3001-D-23, is a white neutral, square Chip On Board (COB) module. This component features a 15.20mm diameter Light Emitting Surface (LES) and a 120° viewing angle. It operates with a typical forward voltage of 36V and a maximum current of 1.4A, tested at 700mA. At the test current of 700mA and 25°C, it achieves 112 lm/W and a typical luminous flux of 2822 lumens. The color temperature is 4000K with a 3-Step MacAdam Ellipse, providing a high Color Rendering Index (CRI) of 90. The module has dimensions of 21.00mm x 21.00mm and a height of 1.70mm with a flat lens type. This component is suitable for general lighting, architectural lighting, and commercial lighting applications. It is supplied in trays.
Additional Information
Series: V15 ArrayRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 21.00mm L x 21.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 36V |
| Height | 1.70mm |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1.4A |
| Lumens/Watt @ Current - Test | 112 lm/W |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 15.20mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 2822lm (Typ) |
