BXRE-30E1000-B-03
LED COB V10 ARRAY WHT SQ 3000KManufacturer: Bridgelux
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Bridgelux V10 Array BXRE-30E1000-B-03 is a Chip On Board (COB) LED module designed for high-performance lighting applications. This warm white module features a 3000K CCT with a 3-step MacAdam ellipse, ensuring excellent color uniformity. The square configuration and a 9.90mm diameter Light Emitting Surface (LES) provide a broad 120° viewing angle. With a typical luminous flux of 1100lm at 350mA test current, it achieves 118 lm/W efficiency. The module operates at a maximum current of 700mA with a typical forward voltage of 26.7V. Its dimensions are 15.80mm L x 15.80mm W with a height of 1.70mm. This component is suitable for general lighting, architectural lighting, and automotive interior lighting. Supplied in a tray.
Additional Information
Series: V10 ArrayRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 15.80mm L x 15.80mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 26.7V |
| Height | 1.70mm |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 700mA |
| Lumens/Watt @ Current - Test | 118 lm/W |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 9.90mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 1100lm (Typ) |
Request a Quote
Clients Also Buy

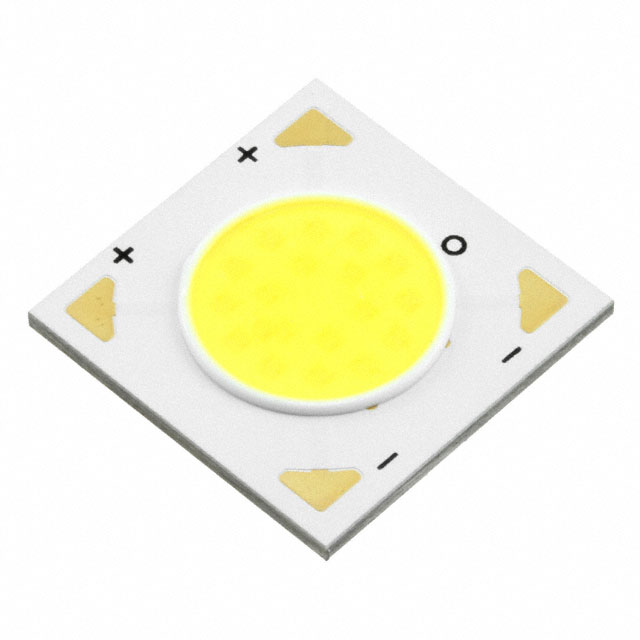

BXRE-27E1000-B-23
