BXRC-50C2000-C-04
LED COB VERO 13 ARRAY RND 5000KManufacturer: Bridgelux
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Bridgelux Vero® 13 Array, BXRC-50C2000-C-04, is a Chip On Board (COB) LED module delivering a cool white light. This component operates with a typical forward voltage of 32.5V and a test current of 500mA, achieving 140 lm/W. It offers a luminous flux of 2270 lumens at 25°C, with a maximum drive current of 1.05A. The color temperature is specified at 5000K, conforming to a 4-Step MacAdam Ellipse for consistent color. Featuring a 70 CRI, the module has a light-emitting surface (LES) diameter of 13.20mm and a total diameter of 36.20mm, with a height of 1.90mm. The viewing angle is 120°, and the lens type is flat. This Bridgelux Vero® 13 Array is designed for general illumination and professional lighting applications. It is supplied in trays and includes a connector.
Additional Information
Series: Vero® 13 ArrayRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 36.20mm Dia |
| Type | Chip On Board (COB) |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 32.5V |
| Height | 1.90mm |
| Current - Test | 500mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1.05A |
| Lumens/Watt @ Current - Test | 140 lm/W |
| CCT (K) | 5000K 4-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | 13.20mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 2270lm (Typ) |
Request a Quote
Clients Also Buy

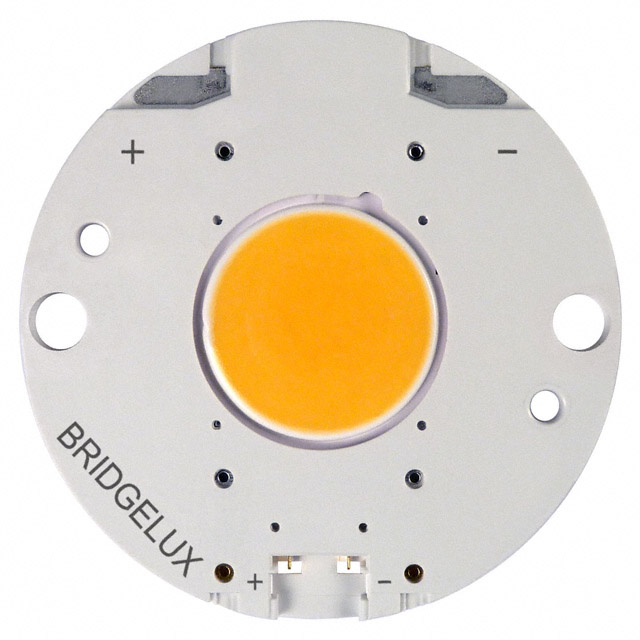

BXRC-27E2000-C-03
