BXRC-40A4001-F-23
LED COB DECOR WHT ROUND 4000KManufacturer: Bridgelux
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Bridgelux Décor Series™ Class A Vero® 18 BXRC-40A4001-F-23 is a neutral white Chip On Board (COB) LED module. This round component features an 18.40mm diameter Light Emitting Surface (LES) and a 120° viewing angle. It operates at a typical forward voltage of 29.5V and a maximum current of 2.1A, with a tested current of 1.05A producing 109 lm/W. The module delivers a typical luminous flux of 3385lm at 25°C and boasts a high Color Rendering Index (CRI) of 93. Designed with a flat lens and incorporating a connector, this module is suitable for general lighting, architectural lighting, and retail display applications. The unit is supplied in trays.
Additional Information
Series: Décor Series™ Class A Vero® 18RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 36.20mm Dia |
| Type | Chip On Board (COB) |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 29.5V |
| Height | 1.90mm |
| Current - Test | 1.05A |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 2.1A |
| Lumens/Watt @ Current - Test | 109 lm/W |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 93 (Typ) |
| Light Emitting Surface (LES) | 18.40mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 3385lm (Typ) |
Request a Quote
Clients Also Buy

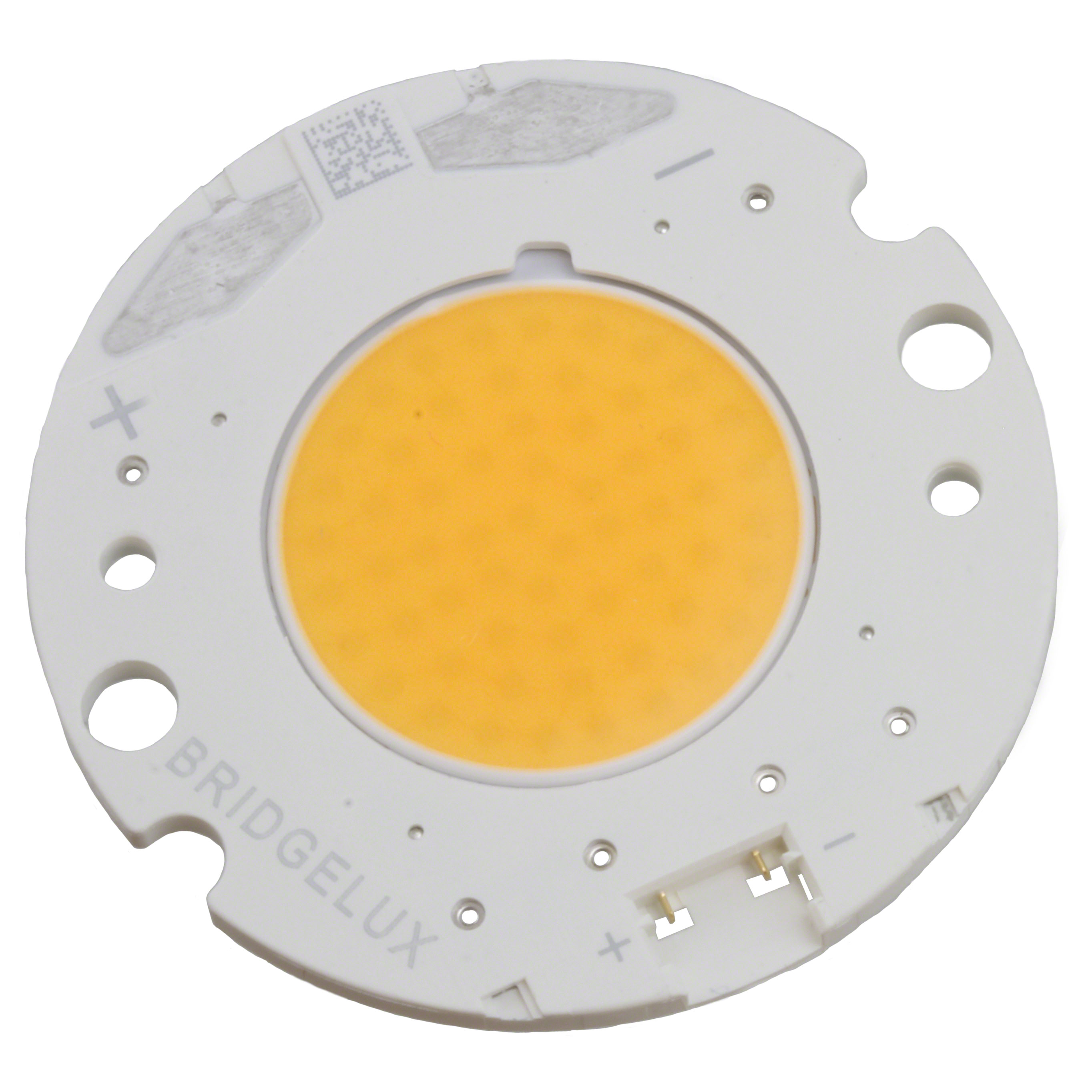

BXRC-30A4001-F-03
LED COB DECOR WM WHT RND 3000K

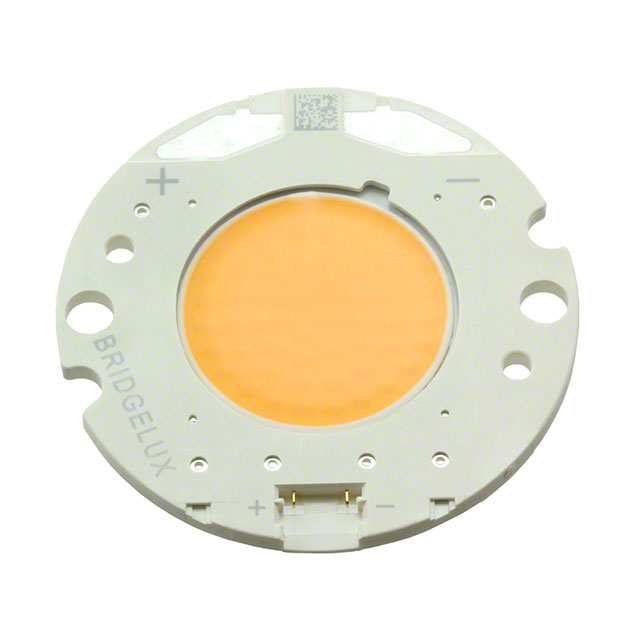

BXRC-30A4001-F-23
LED COB DECOR WM WHT RND 3000K

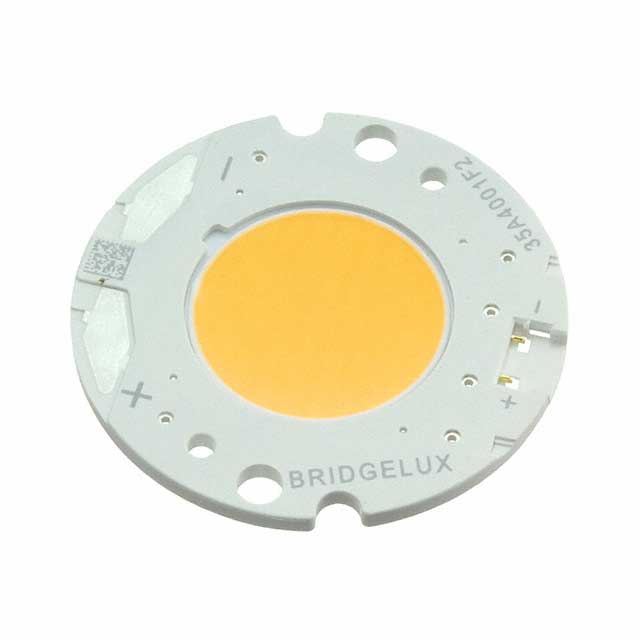

BXRC-35A4001-F-23
