BXRC-35E10K0-L-22
LED COB VERO 29 ARRAY RND 3500KManufacturer: Bridgelux
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

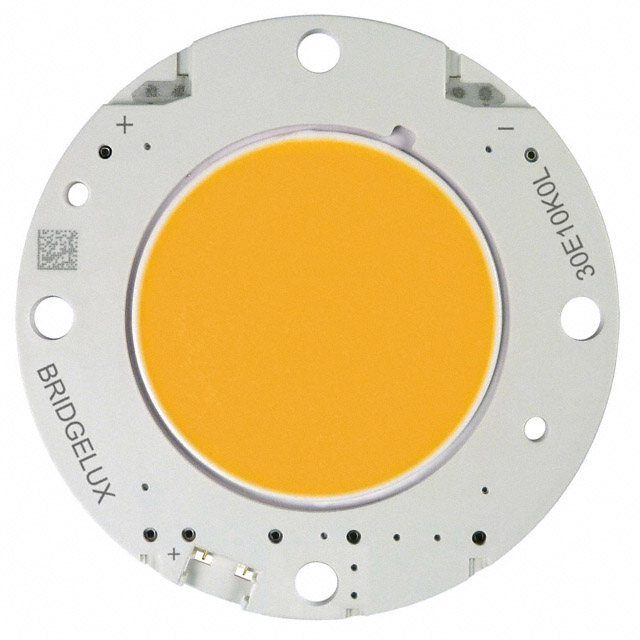

Bridgelux Vero® 29 Array LED COB, part number BXRC-35E10K0-L-22, offers a warm white illumination with a 3500K color temperature, specified within a 2-step MacAdam ellipse for tight color consistency. This round Chip-On-Board (COB) module features a 29.20mm diameter Light Emitting Surface (LES) and a 49.20mm overall diameter. It provides a typical luminous flux of 11399 lumens at a test current of 2.1A and 25°C, achieving 143 lumens per watt. With a Color Rendering Index (CRI) of 80 and a 120° viewing angle, this component is suitable for general lighting, architectural lighting, and entertainment lighting applications. The module operates at a forward voltage of 38V (typical) and can handle a maximum current of 4.2A. It includes an integrated connector for ease of assembly and is supplied in trays.
Additional Information
Series: Vero® 29 ArrayRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 49.20mm Dia |
| Type | Chip On Board (COB) |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 38V |
| Height | 1.90mm |
| Current - Test | 2.1A |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 4.2A |
| Lumens/Watt @ Current - Test | 143 lm/W |
| CCT (K) | 3500K 2-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 29.20mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 11399lm (Typ) |
