BXRC-35A1001-B-23
LED COB DECOR WHT STARBRD 3500KManufacturer: Bridgelux
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Bridgelux Décor Series™ Class A Vero® 10 BXRC-35A1001-B-23 is a Chip On Board (COB) LED module delivering 807 lumens typical at 350mA test current. This warm white module features a 3500K CCT with a 3-step MacAdam ellipse for precise color consistency. Engineered for high-quality illumination, it boasts a CRI of 93, ensuring excellent color rendering. The module operates at a maximum current of 700mA and a forward voltage of 25.5V typical. Its 9.90mm diameter Light Emitting Surface (LES) is housed within a 20.00mm diameter form factor with a flat lens and a 120° viewing angle. Designed for applications demanding superior light quality and efficacy, this component is suitable for architectural and retail lighting solutions. It is supplied in tube packaging and includes a connector.
Additional Information
Series: Décor Series™ Class A Vero® 10RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tube |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 20.00mm Dia |
| Type | Chip On Board (COB) |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 25.5V |
| Height | 1.90mm |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 700mA |
| Lumens/Watt @ Current - Test | 90 lm/W |
| CCT (K) | 3500K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 93 |
| Light Emitting Surface (LES) | 9.90mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 807lm (Typ) |
Request a Quote
Clients Also Buy

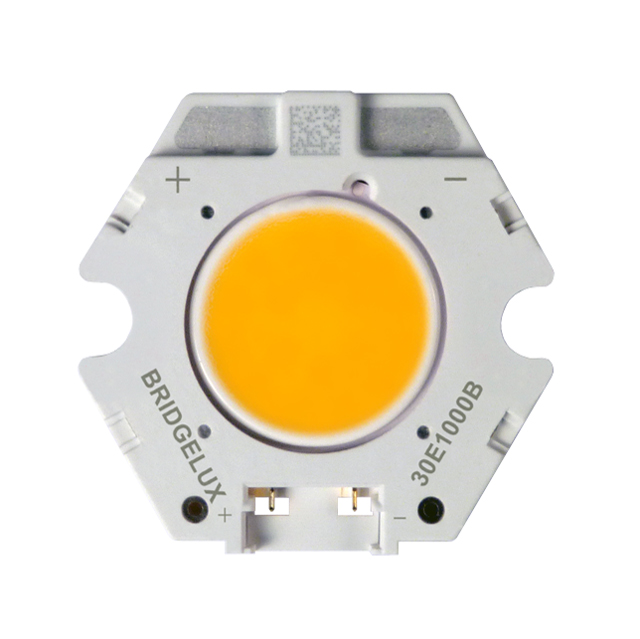

BXRC-30A1001-B-23
