BXRC-30H2000-C-22
LED COB DECOR WM WH ROUND 3000KManufacturer: Bridgelux
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
The Bridgelux BXRC-30H2000-C-22 is a Décor Series™ Ultra Vero® 13 LED COB module designed for high-quality illumination applications. This warm white, round module operates at 31.5V forward voltage and features a 13.20mm diameter Light Emitting Surface (LES). It delivers a typical luminous flux of 1091 lumens at 500mA test current, with an efficacy of 69 lm/W at 85°C. The module boasts an exceptional CRI of 97, ensuring accurate color rendering. It is configured with a flat lens and a 120° viewing angle. The BXRC-30H2000-C-22 is supplied in trays and includes a connector for ease of integration. This component is suitable for use in architectural lighting, retail displays, and other demanding lighting solutions requiring superior color quality and efficiency.
Additional Information
Series: Décor Series™ Ultra Vero® 13RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 36.20mm Dia |
| Type | Chip On Board (COB) |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 31.5V |
| Height | 1.90mm |
| Current - Test | 500mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1.05A |
| Lumens/Watt @ Current - Test | 69 lm/W |
| CCT (K) | 3000K 2-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 97 |
| Light Emitting Surface (LES) | 13.20mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 1091lm (Typ) |
Request a Quote
Clients Also Buy

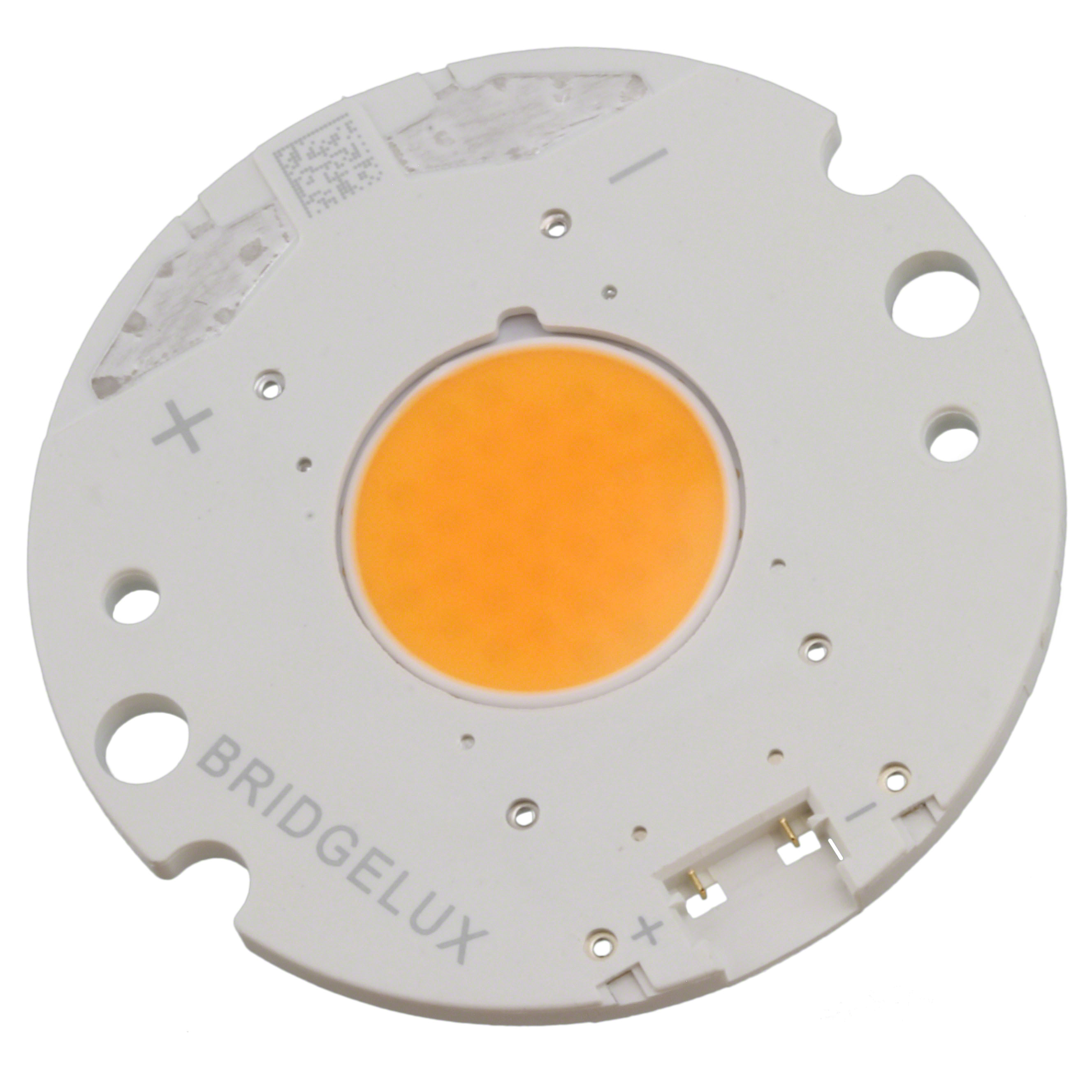

BXRC-27H2000-C-02
