BXRB-30G0740-A-00
LED COB ES WH STARBRD 3000KManufacturer: Bridgelux
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Bridgelux ES STAR Series BXRB-30G0740-A-00 is a Chip On Board (COB) LED module featuring a 3000K warm white color temperature and a high CRI of 90. This component is designed with a 10.50mm diameter Light Emitting Surface (LES) and a domed lens, providing a 120° viewing angle. Operating at a typical forward voltage of 25.7V, it is rated for a maximum current of 700mA, with a test current of 350mA yielding 74 lm/W. The module delivers a typical luminous flux of 740lm at 25°C. Its dimensions are 19.90mm L x 19.90mm W with a height of 3.20mm. This LED COB is commonly utilized in general lighting, architectural lighting, and spotlight applications. It is supplied in tube packaging.
Additional Information
Series: ES STARRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 19.90mm L x 19.90mm W |
| Type | Chip On Board (COB) |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 25.7V |
| Height | 3.20mm |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Lens Type | Domed |
| Current - Max | 700mA |
| Lumens/Watt @ Current - Test | 74 lm/W |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 10.50mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 740lm (Typ) |
Request a Quote
Clients Also Buy

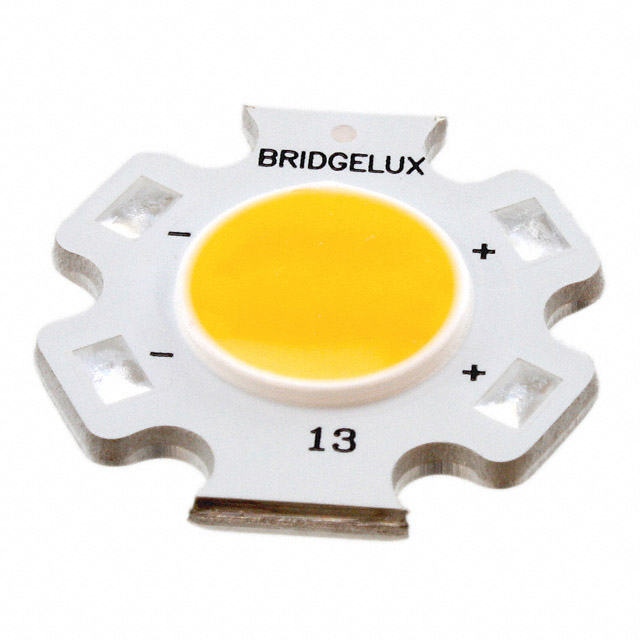

BXRA-30E0540-A-00
LED COB ES WH STARBRD 3000K
BXRA-30E0540-A-03
LED COB ES WH STARBRD 3000K

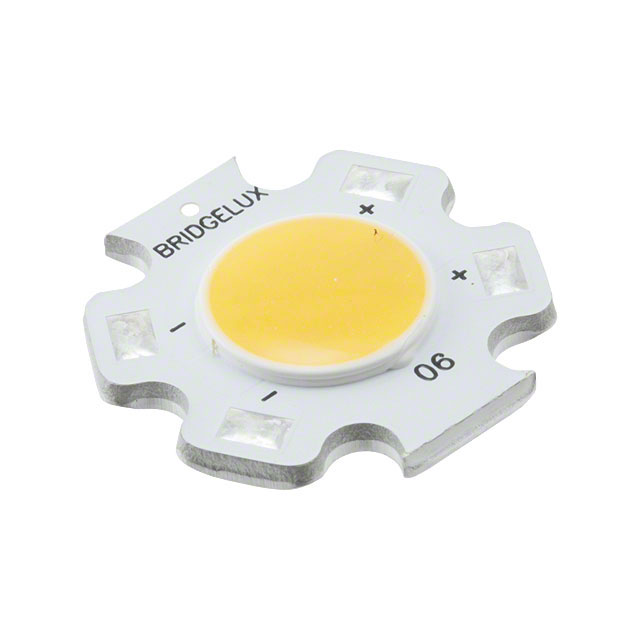

BXRA-30E0740-A-00
