BXRA-C5000-00E0C
LED COB RS CL WHT SQUARE 5600KManufacturer: Bridgelux
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Bridgelux BXRA-C5000-00E0C is a Chip On Board (COB) LED module from the RS series, featuring a 5600K cool white color temperature and a square light-emitting surface. This component is designed for high-power illumination applications, with a maximum drive current of 3A and a typical forward voltage of 24.6V. It delivers a luminous flux of 5600 lumens at a test current of 2.1A and 25°C, achieving 108 lm/W. The module has a CRI of 70 and a wide 120° viewing angle. Its dimensions are 45.60mm L x 50.80mm W with a height of 3.00mm. This Bridgelux RS series COB is commonly utilized in general lighting, architectural lighting, and commercial display applications.
Additional Information
Series: RSRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 45.60mm L x 50.80mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 24.6V |
| Height | 3.00mm |
| Current - Test | 2.1A |
| Viewing Angle | 120° |
| Lens Type | Domed |
| Current - Max | 3A |
| Lumens/Watt @ Current - Test | 108 lm/W |
| CCT (K) | 5600K |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 5600lm (Typ) |
Request a Quote
Clients Also Buy

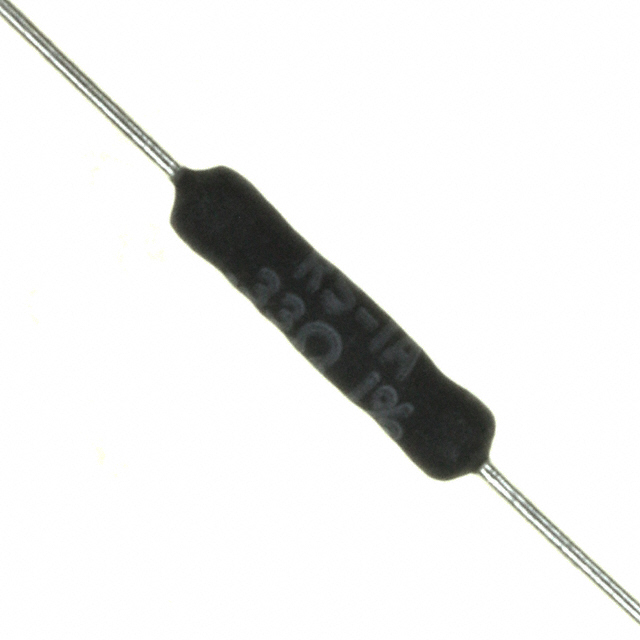

RS005100R0FE73
