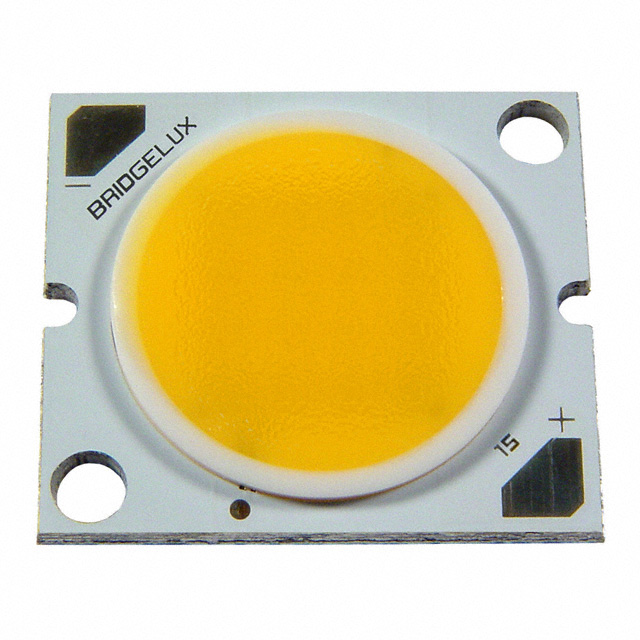

BXRA-C0800-00000
LED COB LED ARRAY WHT SQ 5600KManufacturer: Bridgelux
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
The Bridgelux BXRA-C0800-00000 is a Chip On Board (COB) LED array designed for high-performance lighting applications. This white LED array features a cool 5600K Color Correlated Temperature (CCT) and a square light-emitting surface configuration. It offers a typical luminous flux of 880 lumens at a test current of 900mA and a forward voltage of 13V. The component provides a typical luminous efficacy of 75 lm/W at the test conditions. With a maximum continuous current rating of 1.5A, this LED array is suitable for demanding illumination projects. The 120° viewing angle and domed lens type ensure broad light distribution. Applications include general illumination, architectural lighting, and industrial lighting systems. This component is supplied in tubes.
Additional Information
Series: LED ArrayRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 22.80mm L x 25.80mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 13V |
| Height | 3.50mm |
| Current - Test | 900mA |
| Viewing Angle | 120° |
| Lens Type | Domed |
| Current - Max | 1.5A |
| Lumens/Watt @ Current - Test | 75 lm/W |
| CCT (K) | 5600K |
| CRI (Color Rendering Index) | 65 (Typ) |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 880lm (Typ) |
Request a Quote
Clients Also Buy

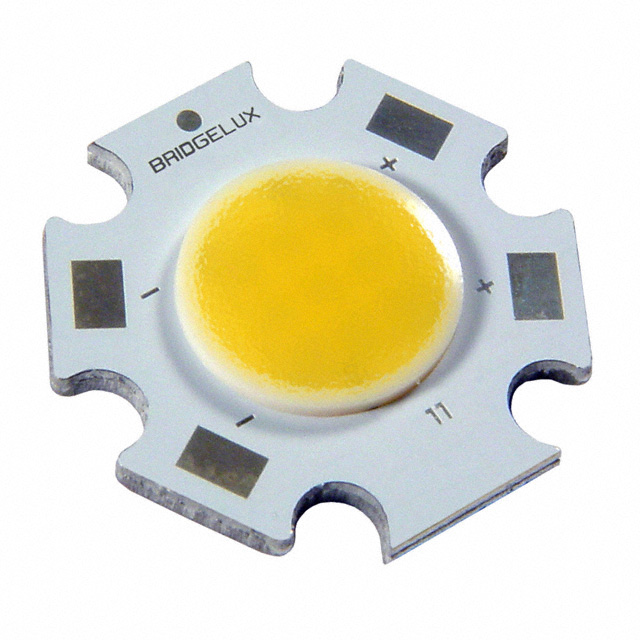

BXRA-C0400-00000
