BXRA-56C1000-A-04
LED COB ES STAR WH STARBRD 5600KManufacturer: Bridgelux
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

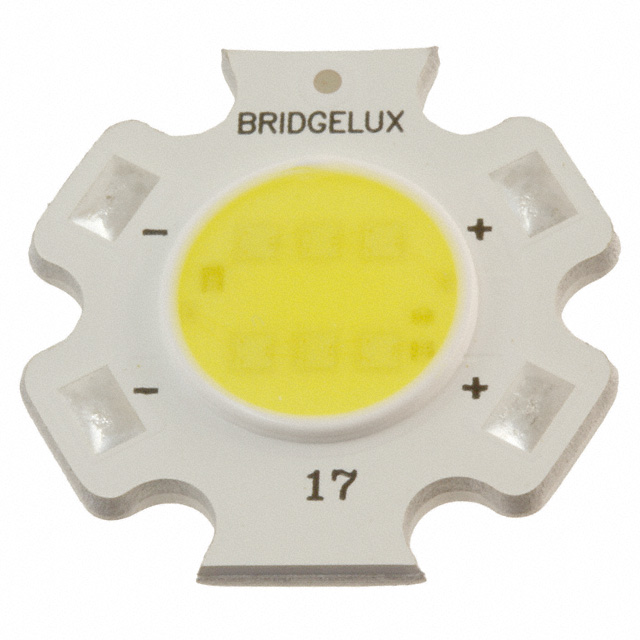

Bridgelux ES STAR series BXRA-56C1000-A-04 is a Chip On Board (COB) LED module delivering 1120 lumens typical at 350mA test current and 25°C. This cool white component features a 5600K color temperature with a 4-Step MacAdam ellipse for tight color consistency and a CRI of 70. The LES measures 10.00mm W x 11.00mm L, integrated onto a starboard configuration. Operating at a maximum current of 500mA, it achieves 114 lm/W at the test current. The module has a forward voltage of 28.1V typical and a broad 120° viewing angle. Its dimensions are 19.90mm L x 19.90mm W with a height of 3.00mm. This component is suitable for general lighting applications.
Additional Information
Series: ES STARRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 19.90mm L x 19.90mm W |
| Type | Chip On Board (COB) |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 28.1V |
| Height | 3.00mm |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Lens Type | Domed |
| Current - Max | 500mA |
| Lumens/Watt @ Current - Test | 114 lm/W |
| CCT (K) | 5600K 4-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | 10.00mm W x 11.00mm L |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 1120lm (Typ) |
