BXRA-27G0740-A-00
LED COB ES WH STARBRD 2700KManufacturer: Bridgelux
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

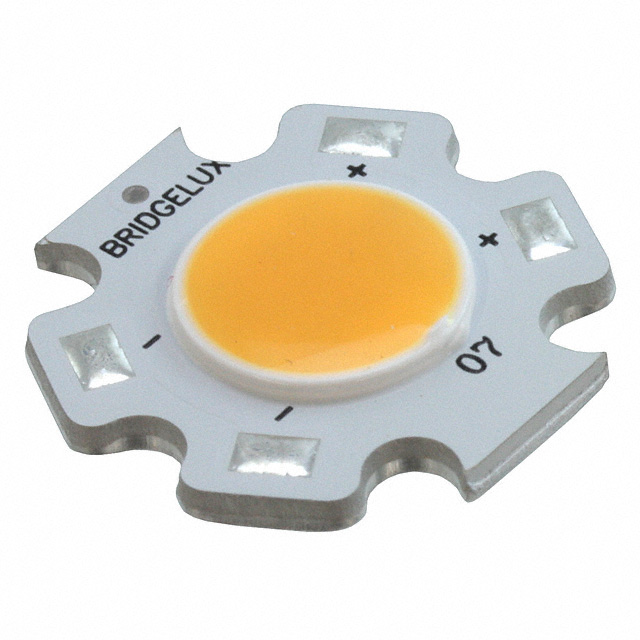

Bridgelux BXRA-27G0740-A-00 is a Chip On Board (COB) LED module from the ES STAR series. This component delivers a warm white light with a Correlated Color Temperature (CCT) of 2700K and a high Color Rendering Index (CRI) of 90, ensuring excellent color accuracy. Designed for high-performance lighting applications, it operates with a typical forward voltage of 27.3V and a maximum current of 500mA, tested at 350mA. At the test current and temperature, it provides a luminous flux of 720 lumens and an efficacy of 75 lumens per watt. The module features a domed lens and a 120° viewing angle, mounted on a starboard configuration for efficient heat dissipation. Its dimensions are 19.90mm in length and 19.90mm in width, with a height of 3.00mm. This LED module is suitable for use in various lighting sectors requiring efficient and high-quality illumination.
Additional Information
Series: ES STARRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 19.90mm L x 19.90mm W |
| Type | Chip On Board (COB) |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 27.3V |
| Height | 3.00mm |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Lens Type | Domed |
| Current - Max | 500mA |
| Lumens/Watt @ Current - Test | 75 lm/W |
| CCT (K) | 2700K |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 720lm (Typ) |
