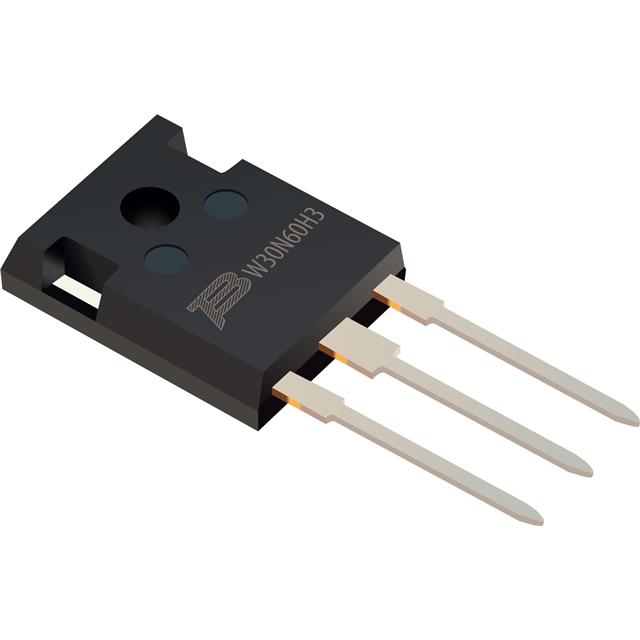

BIDNW30N60H3
IGBT TRENCH FS 600V 60A TO247NLManufacturer: Bourns Inc.
Categories: Single IGBTs
Quality Control: Learn More
IGBT Trench Field Stop 600 V 60 A 230 W Through Hole TO-247N-3L
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 28 ns |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 30A |
| Supplier Device Package | TO-247N-3L |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 30ns/67ns |
| Switching Energy | 1.85mJ (on), 450µJ (off) |
| Test Condition | 400V, 30A, 10Ohm, 15V |
| Gate Charge | 76 nC |
| Grade | - |
| Current - Collector (Ic) (Max) | 60 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 120 A |
| Power - Max | 230 W |
| Qualification | - |
